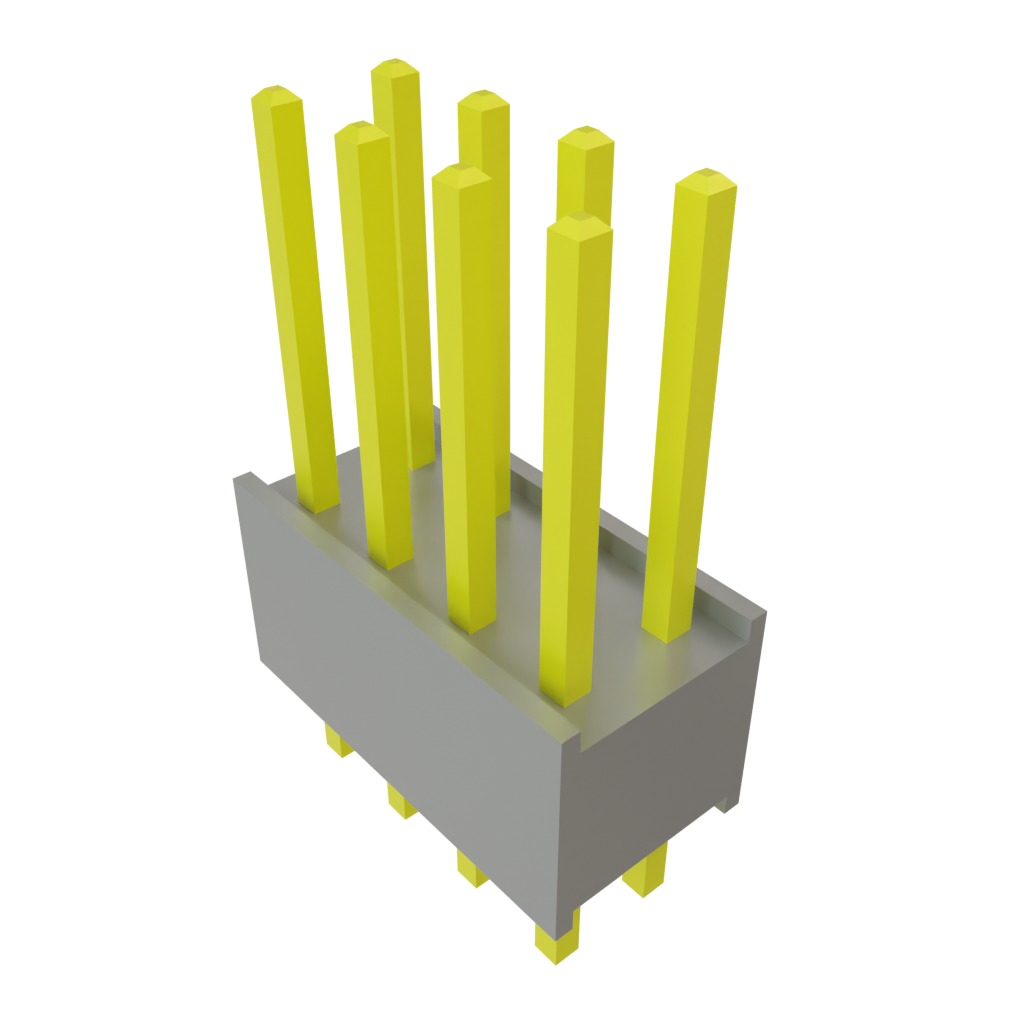

SamtecDW-04-15-L-D-200Connector Headers and PCB Receptacles

This board stacker DW-04-15-L-D-200 header connector from Samtec is used for jumper posts to support physical configuration options on printed circuit boards. This HDR connector's 8 contacts that are made out of phosphor bronze and plated with gold over nickel. Its pitch is 2.54 mm. This is a 2-row connector. It has a header type gender. It has a straight body orientation. This device has a maximum current rating of 3 A/contact. This product comes packaged in bulk, so the parts will be stored loosely. This product is 10.16 mm long, 13.21 mm tall and 5.08 mm deep. DW-04-15-L-D-200 is housed in black polyester. This connector has an operating temperature of -55 to 125 °C. It uses the solder termination method.
