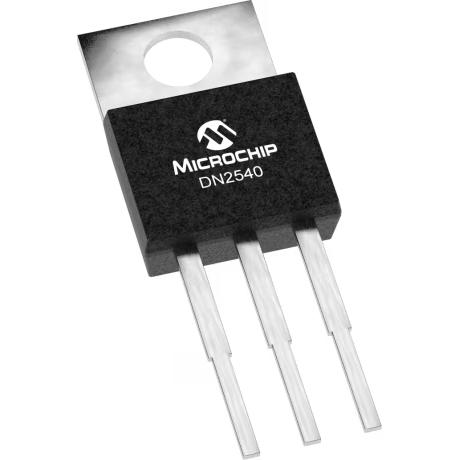

Microchip TechnologyDN2540N5-GMOSFETs
Trans MOSFET N-CH Si 400V 0.5A 3-Pin(3+Tab) TO-220 Tube
| Compliant | |
| EAR99 | |
| Active | |
| 8541.29.00.95 | |
| Automotive | No |
| PPAP | No |
| Power MOSFET | |
| Si | |
| Single | |
| Depletion | |
| N | |
| 1 | |
| 400 | |
| ±20 | |
| 0.5 | |
| 100 | |
| 25000@0V | |
| 200@25V | |
| 1@25V | |
| 12 | |
| 15000 | |
| 20(Max) | |
| 15(Max) | |
| 15(Max) | |
| 10(Max) | |
| -55 | |
| 150 | |
| Tube | |
| 20 | |
| 0.5 | |
| 800 | |
| 1.8 | |
| Mounting | Through Hole |
| Package Height | 9.17(Max) |
| Package Width | 4.83(Max) |
| Package Length | 10.67(Max) |
| PCB changed | 3 |
| Tab | Tab |
| Standard Package Name | TO |
| Supplier Package | TO-220 |
| 3 |
Thanks to Microchip Technology, both your amplification and switching needs can be taken care of with one component: the DN2540N5-G power MOSFET. Its maximum power dissipation is 15000 mW. This N channel MOSFET transistor operates in depletion mode. This MOSFET transistor has an operating temperature range of -55 °C to 150 °C. This device utilizes dmos technology.
