Texas InstrumentsDAC3282EVMData Conversion Development Boards and Kits

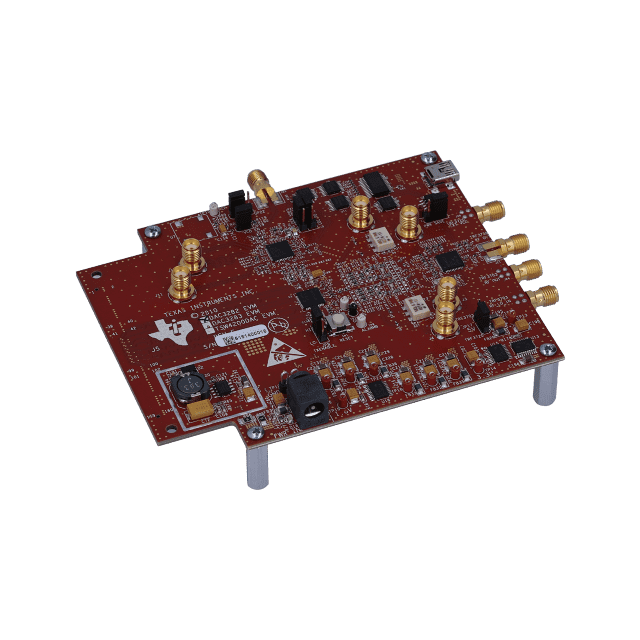

The DAC3282EVM is a circuit board that allows designers to evaluate the performance of Texas Instruments' dual-channel 16-bit 625 MSPS DAC3282 digital-to-analog converter (DAC) with 8-byte wide DDR LVDS data input, integrated 2x interpolation filter and an additional sinc correction filter. The EVM provides a flexible environment to test the DAC3282 under a variety of clock, and input conditions. For ease of use as a complete RF transmit solution the DAC3282EVM includes the CDCE62005 clock generator/jitter cleaner for clocking the DAC3282 as well as a TRF7304 50MHz to 6GHz quadrature modulator for upconverting I/Q ouputs from the DAC to real signals at RF.
