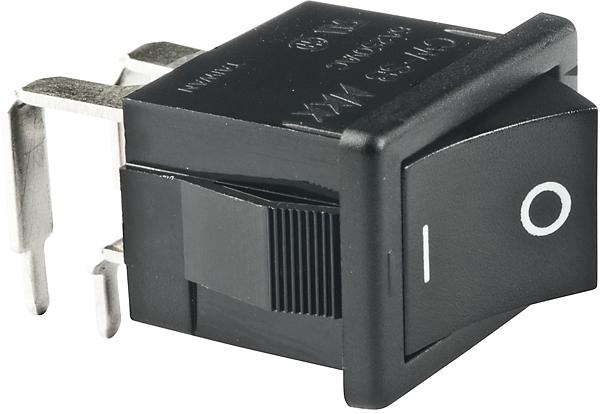

NKK SwitchesCWSB21AA2HSwitch Rocker
Switch Rocker ON None OFF DPST PC Pins Curved Rocker 6A 250VAC 30000Cycles
| Compliant | |
| EAR99 | |
| Active | |
| 8536.50.90.65 | |
| Automotive | No |
| PPAP | No |
| DPST | |
| ON None OFF | |
| Curved Rocker | |
| 6@250VAC | |
| 1500VAC | |
| 500 | |
| 20 | |
| 10000 | |
| 30000 | |
| Black | |
| 15.8 | |
| 2 | |
| 4.7 | |
| Through Hole | |
| PC Pins | |
| 4 | |
| 4 | |
| 9.9 | |
| Thermoset | |
| Black | |
| Polyamide | |
| Black | |
| Right Angle | |
| -10 | |
| 70 | |
| 21.1 | |
| 19.8 | |
| 15.1 | |
| 21.1 | |
| 28.6 | |
| 15.1 | |
| 3.7 | |
| 10.6 |
Implementing this CWSB21AA2H rocker switch from NKK Switches will give the user complete control. This device has a maximum current rating of 6 A @ 250VAC. It has a DPST configuration. This rocker switch panel has an operating temperature range of -10 °C to 70 °C. The CWSB21AA2H rocker switch panel has a PC pin termination style. This product is 21.1 mm long, 15.1 mm tall and 28.6 mm deep. The maximum AC voltage rating is 250 VAC.
