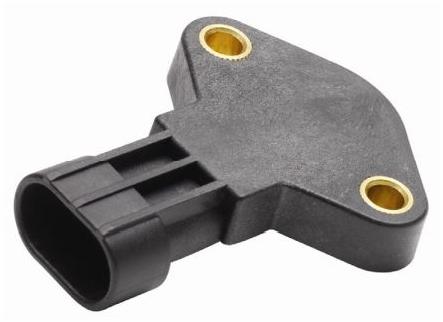

ZF ElectronicsCU103601Angular and Linear Position Sensors
Rotary Position Sensor 5.5V Analog(Voltage) Output 3-Pin
| Compliant | |
| EAR99 | |
| Active | |
| Automotive | No |
| PPAP | No |
| Rotary | |
| 180° | |
| 15 | |
| 3 | |
| v(1,1) | |
| Analog(Voltage) | |
| 0.5 | |
| 5.5 | |
| -40 | |
| 125 | |
| Yes | |
| ±3.5 | |
| Mounting | Screw |
| Package Height | 17.7 |
| Package Width | 48.3 |
| Package Length | 57.33 |
| PCB changed | 3 |
| 3 |
| EDA / CAD Models |
