| EU RoHS | Compliant with Exemption |
| Part Status | Active |
| HTS | EA |
| SVHC | Yes |
| SVHC Exceeds Threshold | Yes |
| Product Category | Power MOSFET |
| Configuration | Single Triple Source |
| Channel Mode | Enhancement |
| Channel Type | N |
| Number of Elements per Chip | 1 |
| Maximum Drain-Source Voltage (V) | 80 |
| Maximum Gate-Source Voltage (V) | 20 |
| Operating Junction Temperature (°C) | -55 to 175 |
| Maximum Continuous Drain Current (A) | 231 |
| Maximum Drain-Source Resistance (mOhm) | 2.4@10V |
| Typical Gate Charge @ Vgs (nC) | 85@10V |
| Typical Input Capacitance @ Vds (pF) | 5850@40V |
| Maximum Power Dissipation (mW) | 294000 |
| Typical Fall Time (ns) | 29 |
| Typical Rise Time (ns) | 18 |
| Typical Turn-Off Delay Time (ns) | 53 |
| Typical Turn-On Delay Time (ns) | 19 |
| Minimum Operating Temperature (°C) | -55 |
| Maximum Operating Temperature (°C) | 175 |
| Supplier Temperature Grade | Automotive |
| Mounting | Surface Mount |
| Package Height | 1.1(Max) |
| Package Width | 4.7(Max) |
| Package Length | 5.3(Max) |
| PCB changed | 4 |
| Tab | Tab |
| Standard Package Name | FPAK |

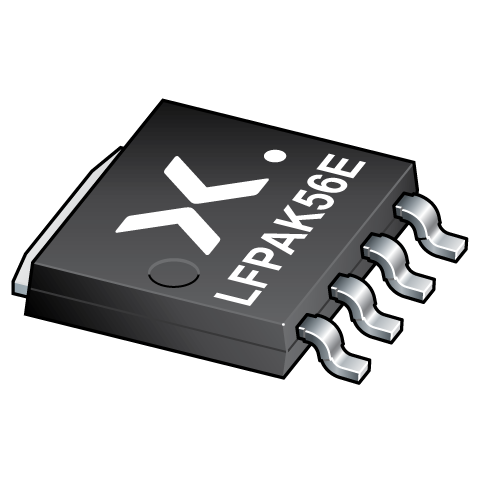

| Supplier Package | LFPAK |
| Pin Count | 5 |
