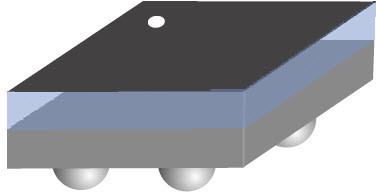

STMicroelectronicsBAL-NRF01D3RF Transformers
RF Transformer 5 Terminal Solder SMD
| Compliant | |
| EAR99 | |
| Active | |
| COMPONENTS | |
| Automotive | No |
| PPAP | No |
| Balun Transformer | |
| 2.25(Typ) | |
| Solder | |
| Surface Mount | |
| 5 | |
| -40 | |
| 105 | |
| Flip Chip | |
| Tape and Reel | |
| 0.00182 | |
| 1.485 | |
| 1.02 | |
| 0.63 |
Use this BAL-NRF01D3 RF transformer from STMicroelectronics to step down voltages in your radio frequency circuit. It has an operating frequency of 2.4GHz to 2.54GHz. This RF transformer has an operating temperature range of -40 °C to 85 °C. It has 5 terminals. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. It also has a balun transformer. This product is 1.475 mm long, 0.63 mm tall and 1.01 mm deep.
