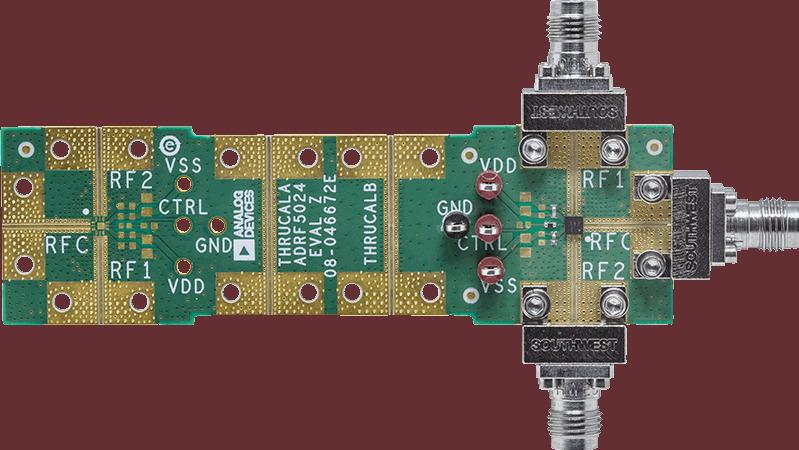

Analog DevicesADRF5024-EVALZ

Applications

• • Industrial Scanner

• • Test and instrumentation

• • Cellular Infrastructure – mmWave 5G

• • Military radios, radars, electronic counter measures (ECMs)

• • Microwave radios and very small aperture terminals (VSATs)

Features and Benefits

• • Ultrawideband frequency range: 100 MHz to 44 GHz

• • Reflective design

• • Low insertion loss with impedance match1.0 dB typical to 18 GHz

  • • 1.4 dB typical to 40 GHz

  • • 1.7 dB typical to 44 GHz

• • Low insertion loss without impedance match0.9 dB typical to 18 GHz

  • • 1.7 dB typical to 40 GHz

  • • 2.1 dB typical to 44 GHz

• • High input linearityP1dB: 27.5 dBm typical

  • • IP3: 50 dBm typical

• • High RF input power handlingThrough path: 27 dBm

  • • Hot switching: 27 dBm

• • No low frequency spurious

• • RF settling time (50% VCTRL to 0.1 dB of final RF output): 17 ns

• • 12-terminal, 2.25 mm × 2.25 mm LGA package

• • Pin compatible with the ADRF5025 low frequency cutoff version
