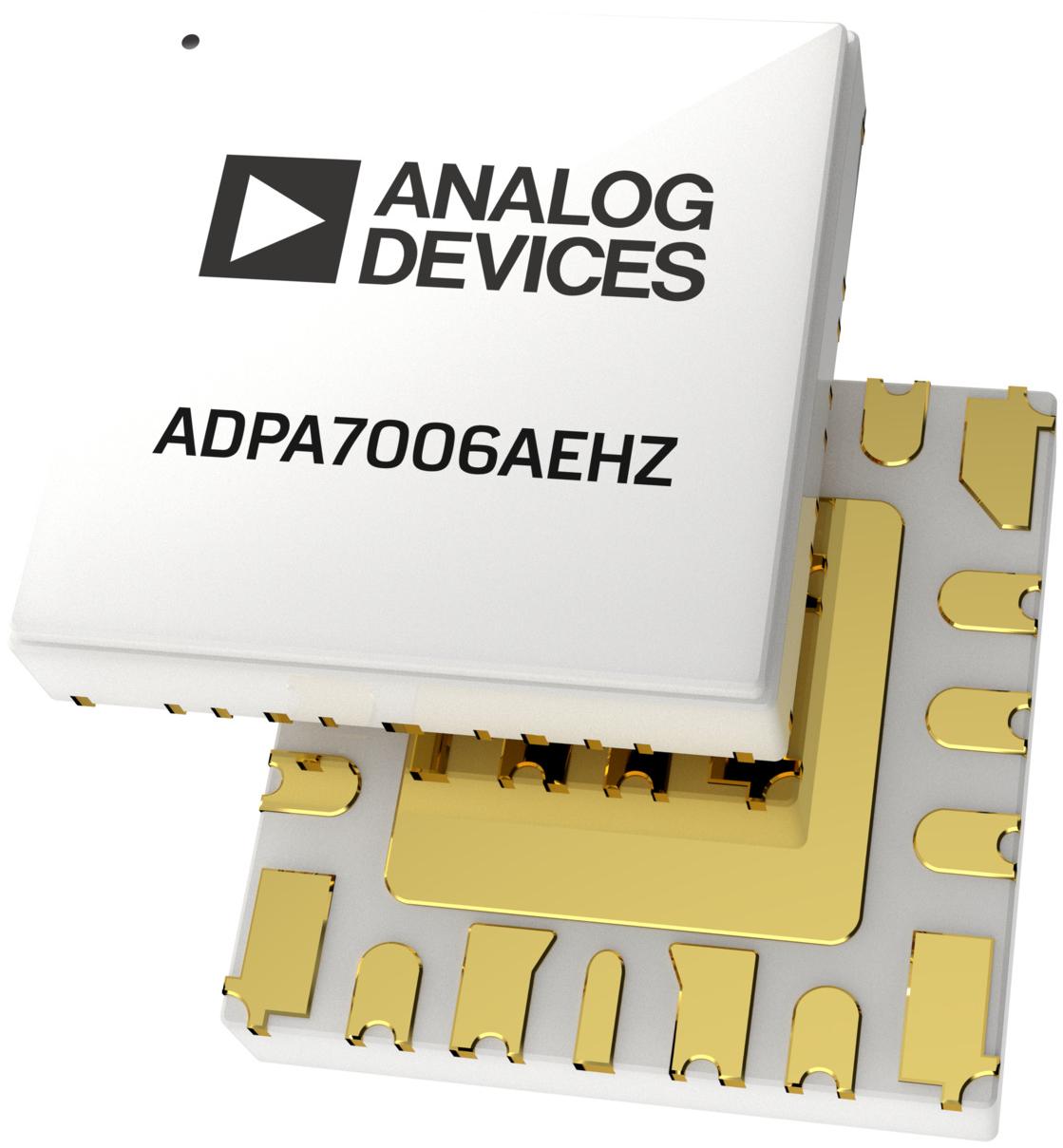

Analog DevicesADPA7006AEHZRF Amplifiers
RF Amp Single Power Amp 44GHz 6V 16-Pin CLLCC EP T/R
| Compliant | |
| 3A001b.2.d. | |
| Active | |
| 8542.33.00.01 | |
| Automotive | No |
| PPAP | No |
| Power Amplifier | |
| 1 | |
| 44000 | |
| ±1 | |
| 22.5@44000MHz | |
| 26@44000MHz | |
| 39@44000MHz | |
| 18(Typ)@44000MHz | |
| 15(Typ)@44000MHz | |
| 4.5@44000MHz | |
| 6 | |
| 4 | |
| 5 | |
| 800(Typ)@5V | |
| Single | |
| 7960 | |
| -40 | |
| 85 | |
| Tape and Reel | |
| Mounting | Surface Mount |
| Package Height | 1.39(Max) mm |
| Package Width | 6 mm |
| Package Length | 6 mm |
| PCB changed | 16 |
| Standard Package Name | LCC |
| Supplier Package | CLLCC EP |
| 16 | |
| Lead Shape | No Lead |
| EDA / CAD Models |
