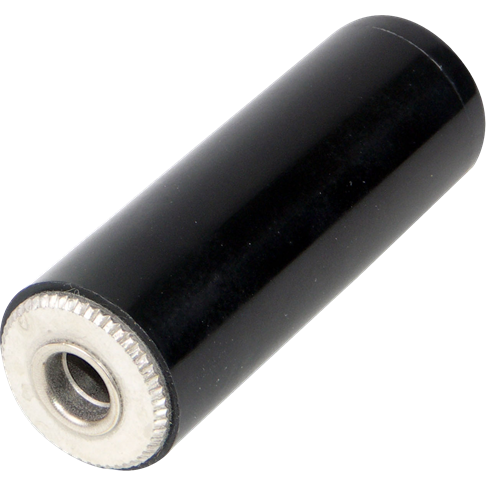

Switchcraft80Connector Audio and Video
Conn Phono Jack F 2 POS Screw ST Cable Mount 2 Terminal 1 Port
| Compliant | |
| EAR99 | |
| Active | |
| 8536.69.40.51 | |
| Automotive | No |
| PPAP | No |
| Phono Jack | |
| F | |
| 2 | |
| 2 | |
| 1 | |
| Screw | |
| Straight | |
| 1 | |
| 25VDC | |
| 10000 | |
| 50 | |
| -20 | |
| 65 | |
| Black | |
| 19.05 | |
| 54.76 | |
| Cable Mount | |
| Phenolic | |
| Nickel | |
| Copper Alloy |
Sync up your sound and picture with this phono jack 80 audio and video connector from Switchcraft. This F connector has 2 F contacts. This connector has a single port. It has a female type gender. It has a straight body orientation. It has a maximum voltage rating of 25 VDC. This device has a maximum current rating of 1 A. This cable has an operating temperature range of -20 °C to 65 °C. Its 2 terminals use the screw termination method.
