| Not Compliant | |
| EAR99 | |
| Active | |
| 8542.39.00.90 | |
| SVHC | Yes |
| SVHC Exceeds Threshold | Yes |
| Automotive | No |
| PPAP | No |
| Motor Driver | |
| Stepper Motor | |
| H-Bridge | |
| 2.4 | |
| 12 | |
| 12 to 55 | |
| 55 | |
| 3000 | |
| -55 | |
| 125 | |
| Military | |
| Tube | |
| Mounting | Through Hole |
| Package Height | 5.33(Max) - 1.27 mm |
| Package Width | 13.34 mm |
| Package Length | 31.24(Max) mm |
| PCB changed | 24 |
| Standard Package Name | DIP |
| Supplier Package | SBCDIP |
| 24 | |
| Lead Shape | Through Hole |

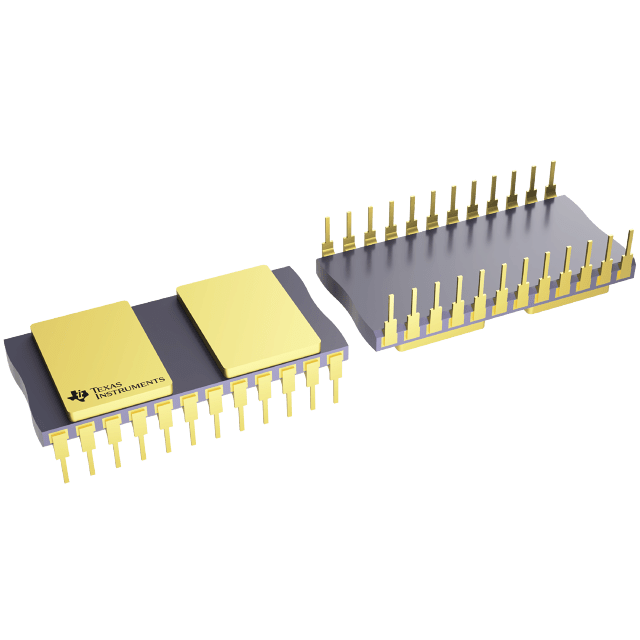

This h-bridge 5962-9232501MXA stepper motor driver, developed by Texas Instruments, can help you increase automation for a wide variety of machines. In order to ensure parts aren't damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This motor controller has a minimum operating temperature of -55 °C and a maximum of 125 °C. This device has a minimum operating supply voltage of 12 V and a maximum of 55 V.
