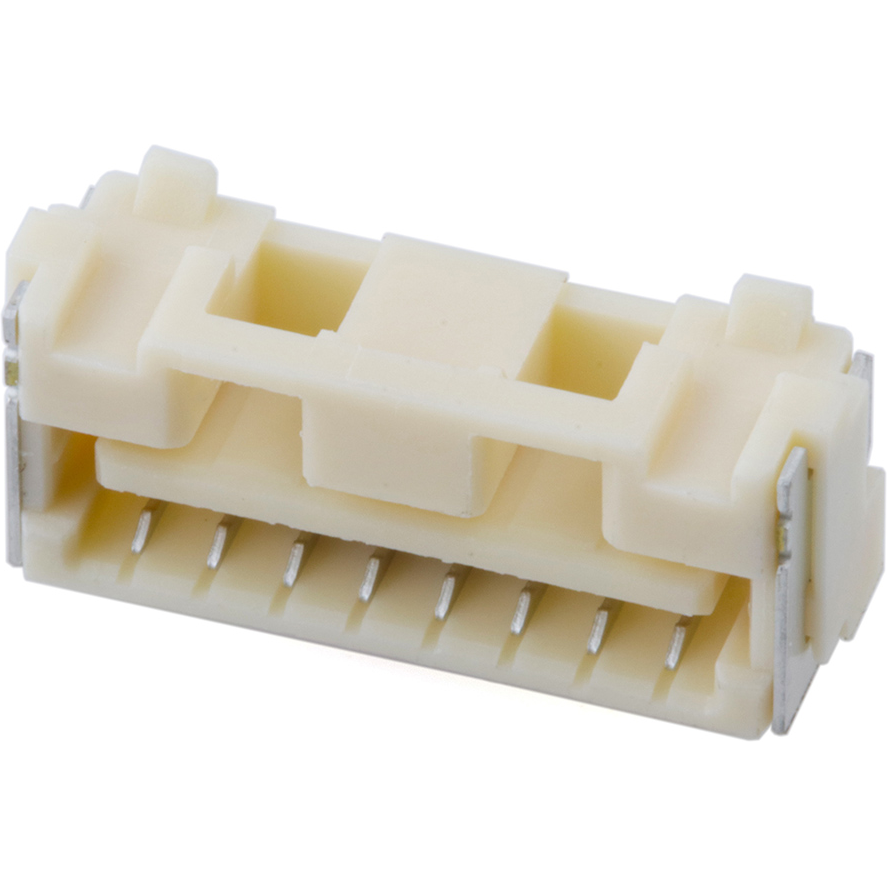

Molex5023820870Connector Headers and PCB Receptacles

This wire to board 5023820870 header connector from Molex reduces the possibility of accidentally shorting pins when a board is being used. This RCP connector's 8 contacts that are made out of copper alloy and plated with tin over nickel. It has a straight body orientation. Its pitch is 1.25 mm. This is a 1-row connector. It has a receptacle type gender. It has a maximum voltage rating of 50 VDC|50VAC. This device has a maximum current rating of 1 A/contact. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. It uses the solder termination method. This product is 13.35 mm long, 4.55 mm tall and 5.95 mm deep. 5023820870 is housed in natural high temperature thermoplastic. This connector has an operating temperature of -40 to 105 °C.
