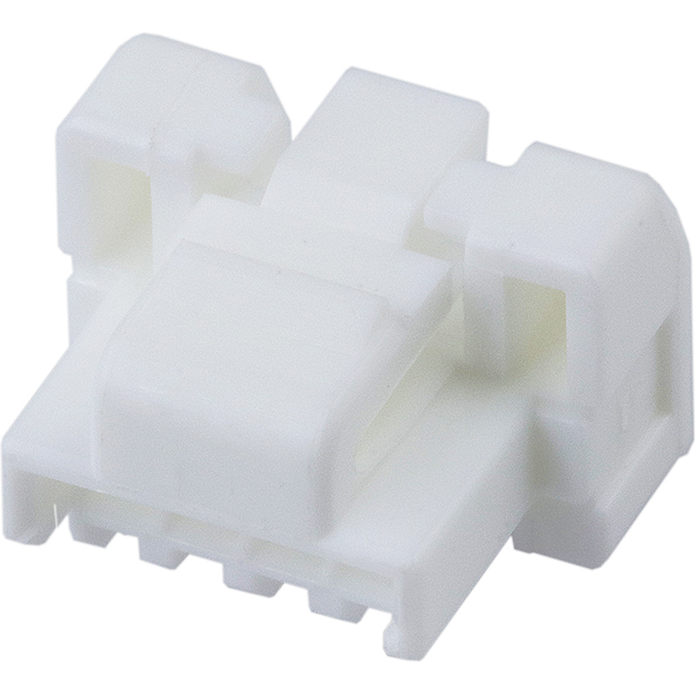

Molex5023800400Connector Discrete Wire Housing
Conn Housing PL 4 POS 1.25mm Crimp ST Cable Mount White CLIK-Mate™ Bag
| Compliant | |
| EAR99 | |
| Active | |
| 8536.69.40.51 | |
| Automotive | No |
| PPAP | No |
| Housing | |
| PL | |
| 4 | |
| 1 | |
| Crimp | |
| 1.25 | |
| Straight | |
| 1/Contact | |
| 50VAC|50VDC | |
| 100 | |
| -40 | |
| 105 | |
| Bag | |
| 0.149 | |
| 8.1 | |
| 5.45 | |
| 7.05 | |
| CLIK-Mate™ | |
| Cable Mount |
Do you need a solution for housing discrete wires because a direct socket to board linkage is not functional? Then this 5023800400 discrete wire housing from Molex is perfect for you! This PL connector has 4 PL contacts. It has a straight body orientation. It has a plug type gender. This is a 1-row connector. Its pitch is 1.25 mm. It has a maximum voltage rating of 50 VDC|50VAC. This device has a maximum current rating of 1 A/contact. 5023800400 is housed in white polybutylene terephthalate. This rectangle connector has an operating temperature of -40 to 105 °C. Its wire is 26-28 AWG. This product is 8.1 mm long, 5.45 mm tall and 7.05 mm deep.
