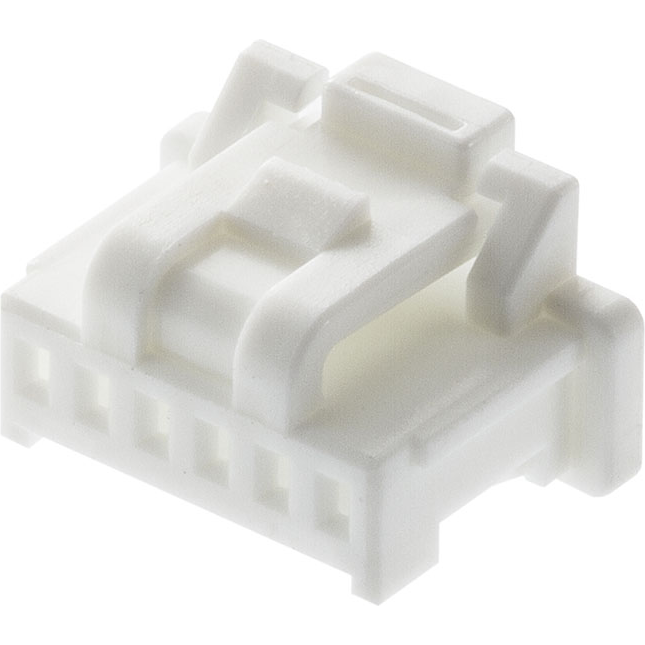

Molex5013300600Connector Discrete Wire Housing
Conn Housing RCP 6 POS 1mm Crimp ST Cable Mount White Pico-Clasp™ Bag
| Compliant | |
| EAR99 | |
| Active | |
| COMPONENTS | |
| Automotive | No |
| PPAP | No |
| Housing | |
| RCP | |
| 6 | |
| 1 | |
| Crimp | |
| 1 | |
| Straight | |
| 1/Contact | |
| 100VDC|100VAC | |
| 100 | |
| -40 | |
| 105 | |
| 30 | |
| Bag | |
| 0.75 | |
| 7.7 | |
| 4.76 | |
| 5.5 | |
| Pico-Clasp™ | |
| Yes | |
| Cable Mount |
Molex's 5013300600 discrete wire housing can make a durable connection between discrete wires. This F connector has 6 F contacts. It has a straight body orientation. Its pitch is 1 mm. It has a maximum voltage rating of 50 V. This is a 1-row connector. It has a female type gender. This device has a maximum current rating of 1 A/contact. This rectangle connector has an operating temperature of -40 to 105 °C. 5013300600 is housed in white nylon 6/6. This product is 7.7 mm long, 4.76 mm tall and 5.5 mm deep.
