3M4620-6301Connector Headers and PCB Receptacles

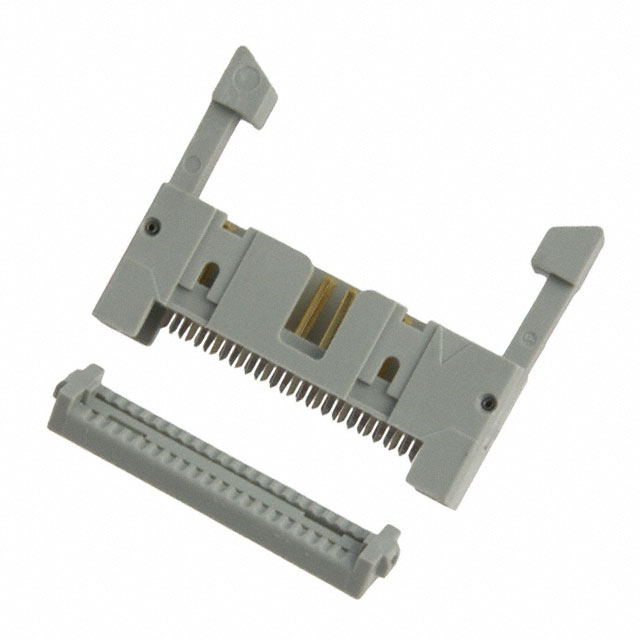

Conn Ejector Header HDR 20 POS 2.54mm IDT RA Cable Mount
| Compliant | |
| EAR99 | |
| Active | |
| 8536.69.40.51 | |
| Automotive | No |
| PPAP | No |
| Ejector Header | |
| HDR | |
| 20 | |
| 2 | |
| IDT | |
| 2.54 | |
| Right Angle | |
| Center Slot | |
| 2.54 | |
| 1.5 | |
| 125VAC | |
| 1000 | |
| -55 | |
| 105 | |
| 35.6 | |
| 8.4 | |
| 27.2 | |
| Cable Mount |
Support physical configuration options for jumper posts by mounting this ejector 4620-6301 header connector from 3M. This PL connector's 20 contacts that are made out of copper alloy and plated with gold over nickel. It has a right angle body orientation. Its pitch is 2.54 mm. This is a 2-row connector. It has a plug type gender. This device has a maximum current rating of 1 A. This product is 35.6 mm long, 27.2 mm tall and 8.4 mm deep. It uses the idt termination method. This connector has an operating temperature of -55 to 105 °C. 4620-6301 is housed in gray glass filled polybutylene terephthalate.
