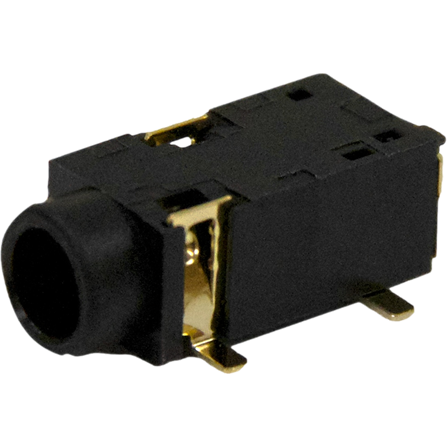

Switchcraft35RASMT4BHNTRXConnector Audio and Video
Conn 3.5MM Stereo Jack F 3 POS Solder RA SMD 5 Terminal 1 Port T/R
| Compliant | |
| EAR99 | |
| Active | |
| COMPONENTS | |
| Automotive | No |
| PPAP | No |
| 3.5MM Stereo Jack | |
| F | |
| 3 | |
| 5 | |
| 1 | |
| Solder | |
| Right Angle | |
| 3 | |
| 100 | |
| 50 | |
| -25 | |
| 85 | |
| 5000 | |
| Black | |
| Tape and Reel | |
| 19 | |
| 6 | |
| 5 | |
| Surface Mount | |
| Thermoplastic | |
| Silver | |
| Copper Alloy |
This 3.5mm stereo jack 35RASMT4BHNTRX audio and video connector from Switchcraft can be adopted in any design which needs a peripheral audio and video device connected to it. This F connector's 3 contacts that are made out of copper alloy and plated with silver. It has a female type gender. It has a right angle body orientation. This connector has a single port. 35RASMT4BHNTRX is housed in thermoplastic. This device has a maximum current rating of 3 A. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This part has an operating temperature range of -25 °C to 85 °C. This product is 19 mm long, 5 mm tall and 6 mm deep. Its 5 terminals use the solder termination method.
