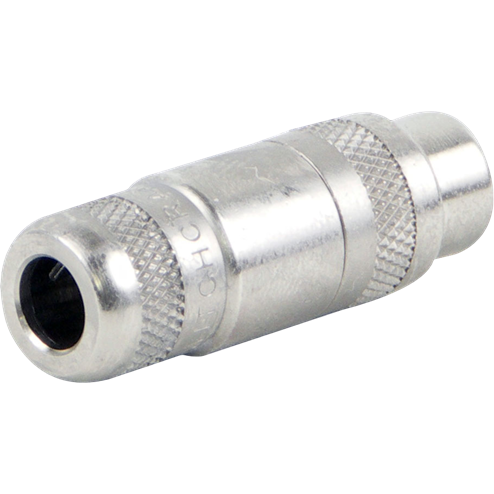

Switchcraft3503XConnector Audio and Video
Conn RCA F 2 POS Solder ST Cable Mount 2 Terminal 1 Port
| Compliant | |
| EAR99 | |
| Active | |
| 8536.69.40.30 | |
| Automotive | No |
| PPAP | No |
| RCA | |
| F | |
| 2 | |
| 2 | |
| 1 | |
| Solder | |
| Straight | |
| -55 | |
| 85 | |
| Copper Alloy | |
| Gold|Nickel | |
| 10.31 | |
| 30.96 | |
| Cable Mount |
Make your project the best it can be by using this rca 3503X audio and video connector from Switchcraft. This F connector has 2 F contacts. It has a female type gender. It has a straight body orientation. This connector has a single port. This product is 30.96 mm long with a diameter of 10.31 mm. Its 2 terminals use the solder termination method. This cable has an operating temperature range of -55 °C to 85 °C.
