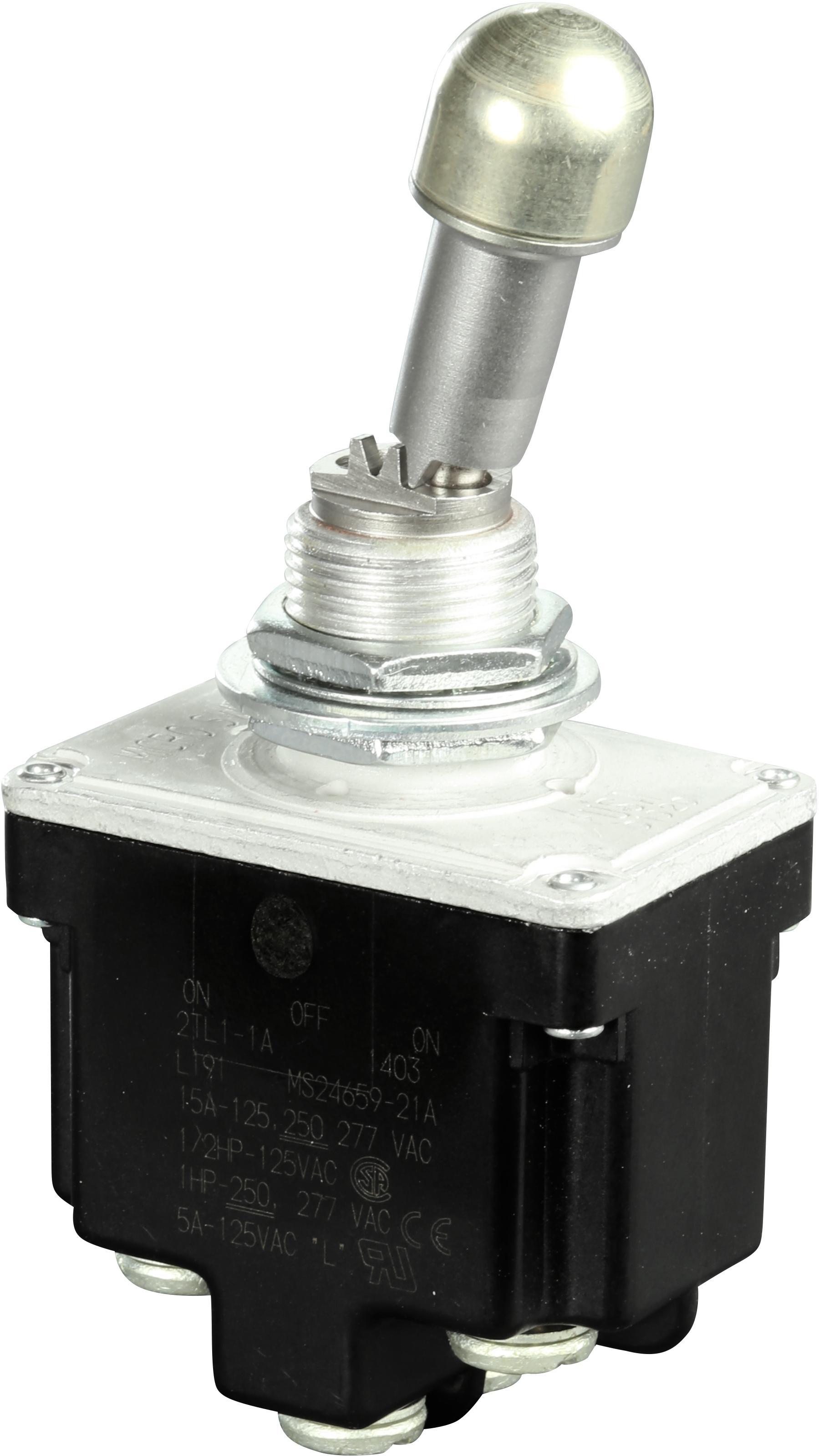

Honeywell2TL1-1ASwitch Toggle
Switch Toggle ON OFF ON DPDT Locking Lever Screw 20A 277VAC 250VDC 745.7VA Panel Mount with Threads
| Compliant | |
| EAR99 | |
| Active | |
| 8536.50.9065 | |
| Automotive | Yes |
| PPAP | Unknown |
| Locking Lever | |
| DPDT | |
| ON OFF ON | |
| Threaded | |
| 20@28VDC | |
| 745.7@(CSA/UL) | |
| 28.96 | |
| 2 | |
| 9.7 | |
| Panel Mount with Threads | |
| Screw | |
| 6 | |
| 3.3 | |
| 9.7 | |
| Complete/Environment-Proof/Panel/Body | |
| Construction/N/A/Panel/Body | |
| Complete/Environment-Proof/N/A/N/A | |
| Straight | |
| -65 | |
| 71 | |
| 15/32-32 | |
| 34.04 | |
| 11.94 | |
| 23.11 | |
| 34.29 | |
| 68.04 | |
| 34.04 | |
| 23.11 | |
| 75.18 |
With this 2TL1-1A toggle switch from Honeywell you can toggle on or off various components of your application. It has a DPDT configuration. This device has a maximum current rating of 20 A @ 28VDC. This toggle switch has an operating temperature range of -65 °C to 72 °C. The 2TL1-1A toggle switch has a screw termination style. This product is 34.04 mm long, 75.18 mm tall and 23.11 mm deep. The maximum AC voltage rating is 277 VAC and the maximum DC voltage rating is 250 VDC.
