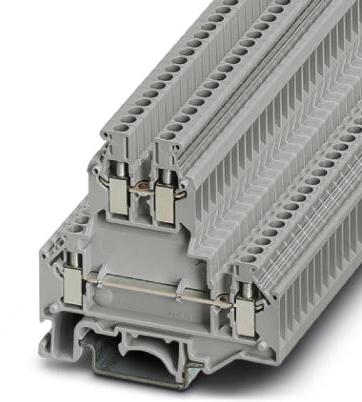

PHOENIX CONTACT2771010Connector Terminal Blocks
Conn Terminal Block F 4 POS Screw ST G DIN Rail/T DIN Rail 24A
| Compliant with Exemption | |
| EAR99 | |
| Active | |
| 8536.69.40.40 | |
| SVHC | Yes |
| SVHC Exceeds Threshold | Yes |
| Automotive | No |
| PPAP | No |
| Terminal Block | |
| F | |
| 4 | |
| 4 | |
| 1 | |
| Screw | |
| Straight | |
| 24 | |
| 500V | |
| -60 | |
| 110 | |
| 13.97 | |
| 67 | |
| 5.2 | |
| 69.5 | |
| Gray | |
| G DIN Rail|T DIN Rail |
This 2771010 PCB terminal block from Phoenix Contact will join multiple circuits by connecting to the bare wire. This F connector has 4 F contacts. This is a 4-row connector. It has a maximum voltage rating of 500 V. It has a straight body orientation. It has a female type gender. This device has a maximum current rating of 32 A. 2771010 is housed in polyamide. Its wire is 12-28 AWG. This product is 67 mm long, 69.5 mm tall and 5.2 mm deep. It uses the screw termination method.
