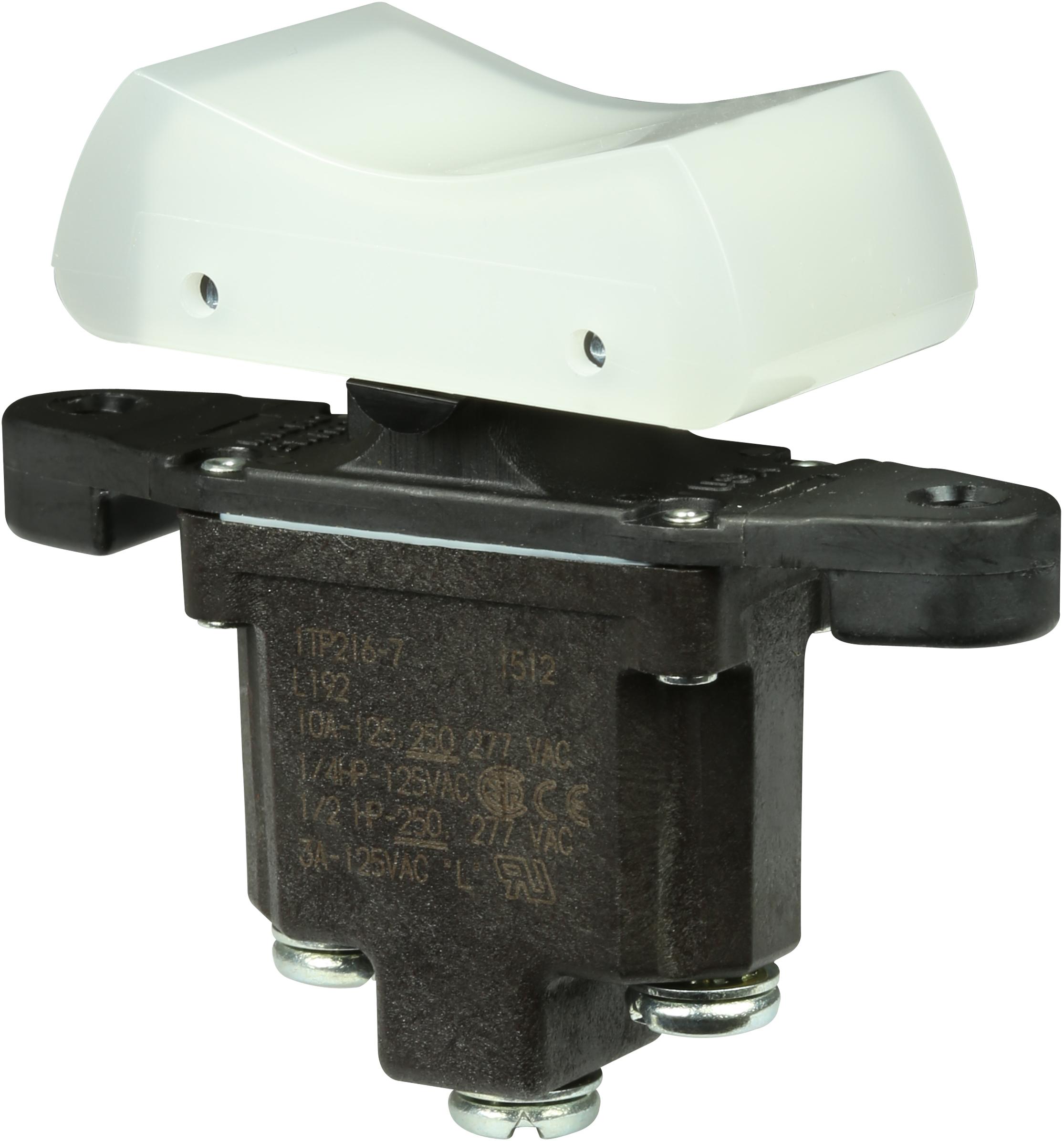

Honeywell1TP216-7Switch Rocker
Switch Rocker (ON) OFF (ON) SPDT Screw Rocker 10A 277VAC 250VDC 372.85VA
| Compliant | |
| EAR99 | |
| Active | |
| 8536.50.90.40 | |
| Automotive | No |
| PPAP | No |
| SPDT | |
| (ON) OFF (ON) | |
| Rocker | |
| 10@277VAC@(CSA/UL) | |
| 372.85@(CSA/UL) | |
| White | |
| 37.1 | |
| 1 | |
| Panel Mount | |
| Screw | |
| 3 | |
| 6.35 | |
| 9.65 | |
| Environmental | |
| White | |
| Straight | |
| -54 | |
| 71 | |
| 55.1 | |
| 29.5 | |
| 40.82 | |
| 55.1 | |
| 22.1 | |
| 22.1 |
Safely turn on and off designs with this 1TP216-7 rocker switch from Honeywell. This device has a maximum current rating of 10 A @ 277VAC@(CSA/UL). It has a SPDT configuration. This rocker switch panel has a minimum operating temperature of -54 °C and a maximum of 71 °C. The 1TP216-7 rocker switch panel has a screw termination style. The maximum AC voltage rating is 277 VAC and the maximum DC voltage rating is 250 VDC. This product is 55.1 mm long and 22.1 mm.
