Honeywell1TP1-1Switch Rocker
Switch Rocker ON OFF ON SPDT Screw Rocker 15A 277VAC 745.7VA
| Compliant | |
| EAR99 | |
| Active | |
| 8536.50.90.40 | |
| Automotive | No |
| PPAP | No |
| SPDT | |
| ON OFF ON | |
| Rocker | |
| 15@277VAC | |
| 745.7 | |
| 37.08 | |
| 1 | |
| Panel Mount | |
| Screw | |
| 3 | |
| 9.65 | |
| Panel/Cover/N/A | |
| N/A/N/A/Environmental | |
| Straight | |
| -54 | |
| 71 | |
| 55.12 | |
| 22.1 | |
| 36.83 | |
| 45.36 | |
| 55.12 | |
| 22.1 | |
| 22.1 | |
| 13.21 |

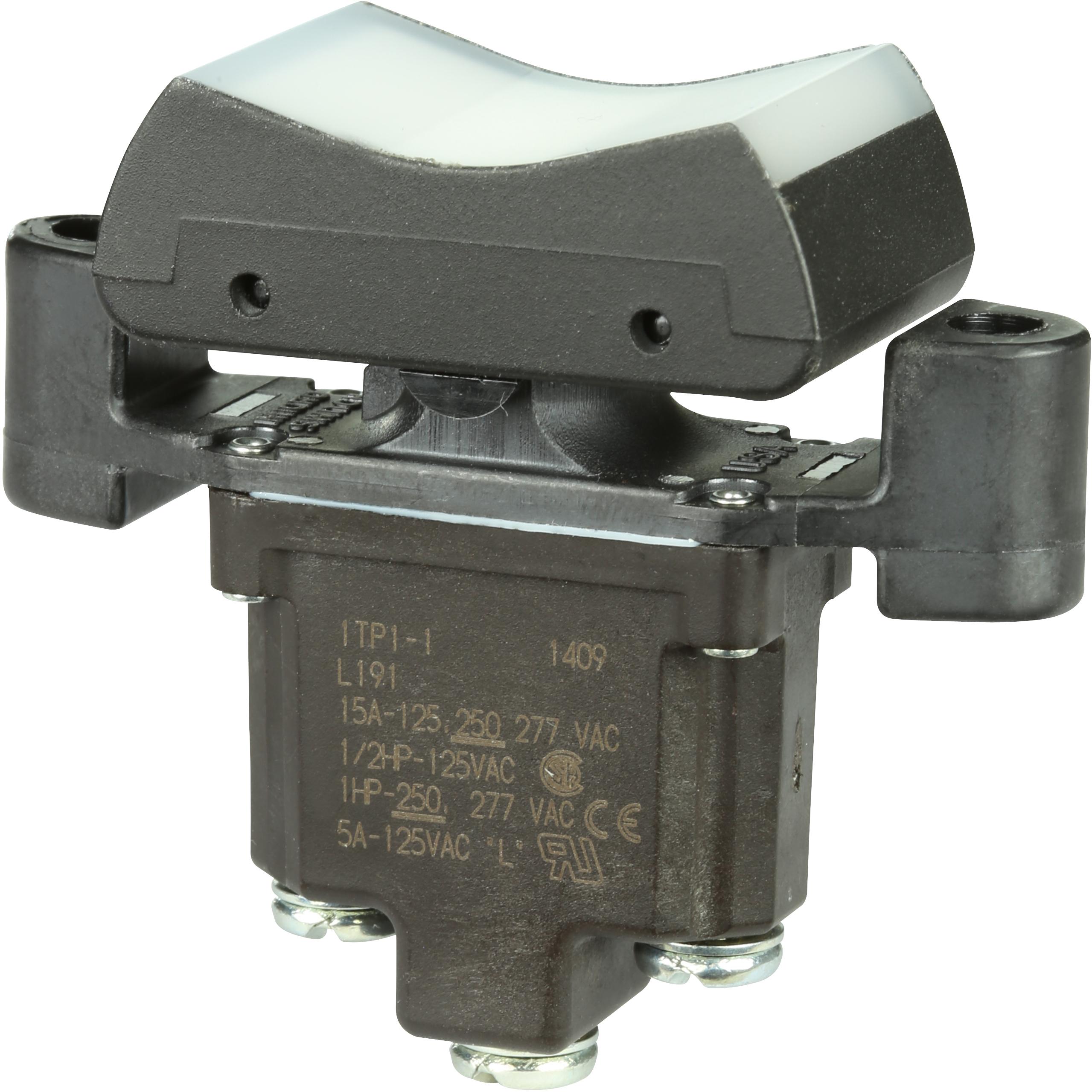

This 1TP1-1 rocker switch from Honeywell will turn your project on and off when pressed. This device has a maximum current rating of 15 A @ 277VAC. It has a SPDT configuration. This rocker switch panel has an operating temperature range of -54 °C to 71 °C. The 1TP1-1 rocker switch panel has a screw termination style. This product is 55.12 mm long and 22.1 mm. The maximum AC voltage rating is 277 VAC.
| EDA / CAD Models |
