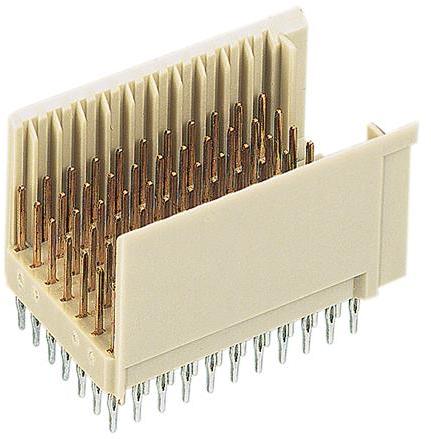

HARTING Technology Group17030552201Connector Backplane
Conn Hard Metric M 55 POS 2mm Press Fit ST Thru-Hole Tube
| Compliant | |
| EAR99 | |
| Active | |
| 8536.69.40.40 | |
| Automotive | No |
| PPAP | No |
| Hard Metric | |
| M | |
| 55 | |
| Press Fit | |
| 2 | |
| Straight | |
| 1 | |
| 1000 | |
| 20 | |
| -55 | |
| 125 | |
| 250 | |
| Tube | |
| 4.3 | |
| 25 | |
| 15.4 | |
| 13.4 | |
| Through Hole |
This hard metric 17030552201 backplane connector from Harting is ideal for linking multiple connectors together. This M connector's 55 contacts that are made out of copper alloy and plated with gold over nickel. This is a 5-row connector. Its pitch is 2 mm. It has a male type gender. It has a straight body orientation. This device has a maximum current rating of 1 A. This product is 25 mm long, 13.4 mm tall and 15.4 mm deep. 17030552201 is housed in gray polycarbonate. This backplane connector has an operating temperature of -55 to 125 °C. It uses the press fit termination method.
