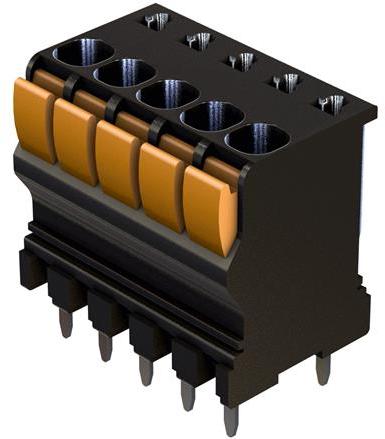

HARTING Technology Group14020314101000Connector Terminal Blocks
Conn Terminal Block 3 POS 3.5mm Spring Clamp ST Thru-Hole 10A har-flexicon® Bulk
| Compliant | |
| EAR99 | |
| Active | |
| 8536.69.40.40 | |
| Automotive | No |
| PPAP | No |
| Terminal Block | |
| 3 | |
| 3.5 | |
| 1 | |
| 3 | |
| Spring Clamp | |
| Straight | |
| 10 | |
| 300V | |
| 1000 | |
| -40 | |
| 110 | |
| Bulk | |
| 3.38 | |
| 10.5 | |
| 14.85 | |
| Black | |
| har-flexicon® | |
| Through Hole |
This 14020314101000 PCB terminal block manufactured from Harting will bridge different sections of wires together. This is a 1-row connector. It has a straight body orientation. It has a maximum voltage rating of 300 V. Its pitch is 3.5 mm. This device has a maximum current rating of 10 A. 14020314101000 is housed in polyamide/polyphthalamide. It uses the solder termination method. This product is 14.85 mm tall. This quick disconnect terminal has an operating temperature of -40 to 110 °C. Its wire is 16-30 AWG.
