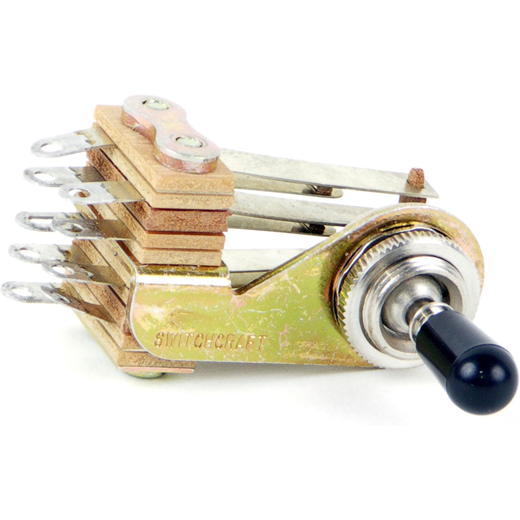

Switchcraft12015XSwitch Toggle
Switch Toggle N.C. 4PDT Round Lever Solder Lug 3A 300VAC Panel Mount with Threads
| Compliant | |
| EAR99 | |
| Active | |
| Automotive | No |
| PPAP | No |
| Round Lever | |
| 4PDT | |
| N.C. | |
| Threaded | |
| 3@300VAC | |
| 250VDC | |
| Black | |
| Panel Mount with Threads | |
| Solder Lug | |
| 12 | |
| Right Angle |
The 12015X toggle switch from Switchcraft is a simple way to power on and off various components of your application. This device has a maximum current rating of 3 A @ 300VAC. It has a 4PDT configuration. The 12015X toggle switch has a solder lug termination style. The maximum AC voltage rating is 300 VAC.
