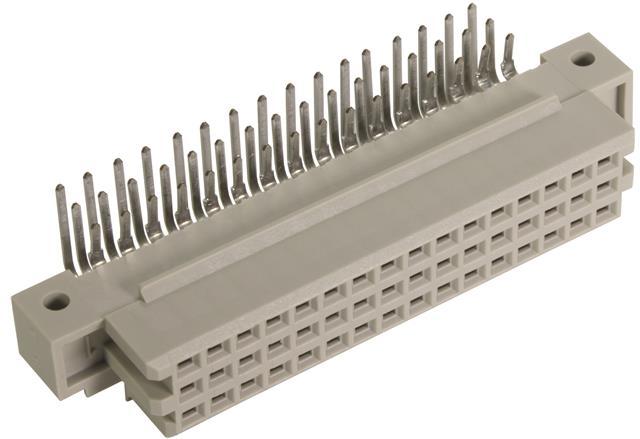

HARTING Technology Group09282486801Connector Backplane
Conn Backplane F 48 POS 2.54mm Solder RA Thru-Hole
| Compliant | |
| EAR99 | |
| Active | |
| COMPONENTS | |
| Automotive | No |
| PPAP | No |
| Backplane | |
| F | |
| 48 | |
| Solder | |
| 2.54 | |
| Right Angle | |
| 2 | |
| 1000000 | |
| 20 | |
| 400 | |
| 8.58 | |
| 53.3 | |
| 10.5 | |
| Through Hole |
If you are in need of a connector that can provide a parallel serial bus connection, look no further than the 09282486801 backplane connector from Harting. This F connector has 48 contacts that are plated with gold over nickel. It has a right angle body orientation. Its pitch is 2.54 mm. It has a female type gender. This is a 3-row connector. This device has a maximum current rating of 2 A. It uses the solder termination method. This product is 10.6 mm tall.
