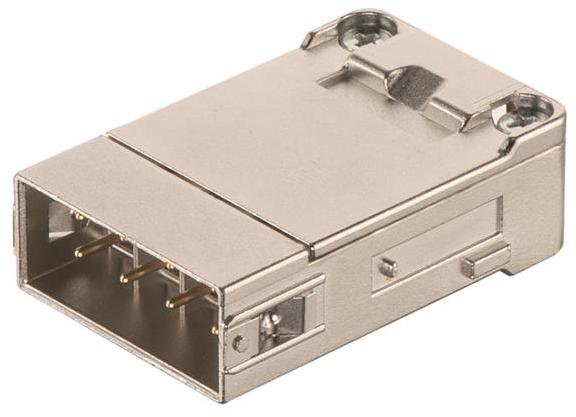

HARTING Technology Group09140083011Connector Rectangular
Conn Rectangular M 8 POS Crimp ST Cable Mount
| Compliant | |
| EAR99 | |
| Active | |
| 8536.90.40.00 | |
| SVHC | Yes |
| SVHC Exceeds Threshold | Yes |
| Automotive | No |
| PPAP | No |
| Rectangular | |
| PL | |
| 8 | |
| 2 | |
| Crimp | |
| Straight | |
| M | |
| 5 | |
| 50V | |
| -40 | |
| 85 | |
| 500 | |
| Yes | |
| 30 | |
| 26.35 | |
| 41.4 | |
| 13.9 | |
| Cable Mount |
If you are in need of a direct board to socket connection, look no further than this 09140083011 discrete wire housing from Harting. This M connector has 8 M contacts. It has a male type gender. This is a 2-row connector. It has a straight body orientation. This product is 26.35 mm long, 13.9 mm tall and 41.4 mm deep.
