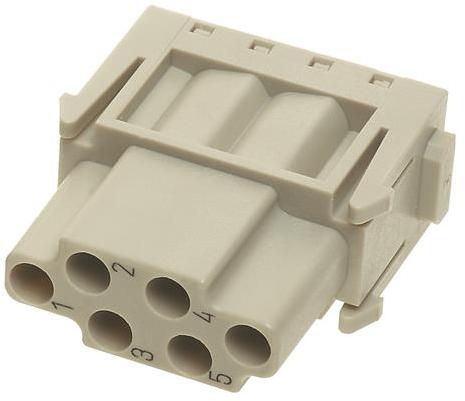

HARTING Technology Group09140063101Connector Rectangular
Conn Rectangular F 6 POS Crimp ST Panel Mount
| Compliant | |
| EAR99 | |
| Active | |
| 8538.90.81.80 | |
| Automotive | No |
| PPAP | No |
| Rectangular | |
| RCP | |
| 6 | |
| Crimp | |
| Straight | |
| F | |
| 16 | |
| 500V | |
| 10000 | |
| -40 | |
| 125 | |
| 500 | |
| Yes | |
| 0.003 | |
| 14.6 | |
| 35.8 | |
| 34.2 | |
| Panel Mount |
Use this 09140063101 discrete wire housing from Harting for a durable connection between discrete wires. This F connector has 6 F contacts. It has a female type gender. It has a straight body orientation. This product is 14.6 mm long, 34.2 mm tall and 35.8 mm deep.
