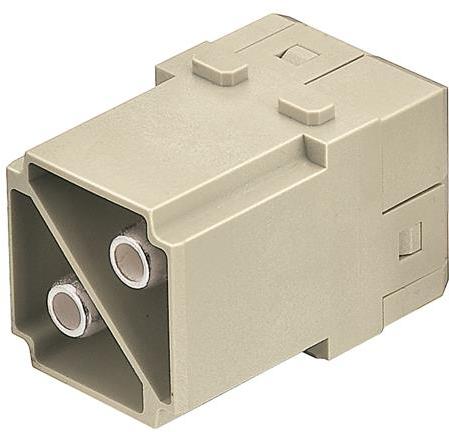

HARTING Technology Group09140022653Connector Power
Conn Power M 2 POS Screw ST Cable Mount 2 Terminal 1 Port Han-Modular®
| Compliant with Exemption | |
| EAR99 | |
| Active | |
| 8536.69.40.51 | |
| SVHC | Yes |
| SVHC Exceeds Threshold | Yes |
| Automotive | No |
| PPAP | No |
| Power | |
| M | |
| 2 | |
| 2 | |
| 1 | |
| Screw | |
| Straight | |
| 100 | |
| 1000V | |
| 10000 | |
| 0.3 | |
| -40 | |
| 125 | |
| 500 | |
| 4-6 | |
| Light Gray | |
| 69 | |
| 34.2 | |
| 49 | |
| 29.4 | |
| Han-Modular® | |
| Cable Mount | |
| Silver | |
| Copper Alloy |
This 09140022653 power connector from Harting comes in a variety of types to support AC or DC power entry modules. This M connector's 2 contacts that are made out of copper alloy and plated with silver. It has a straight body orientation. This connector has a single port. It has a maximum voltage rating of 1000 V. It has a male type gender. 09140022653 is housed in polycarbonate. This device has a maximum current rating of 100 A. Its 2 terminals use the crimp termination method. This product is 34.2 mm long, 29.4 mm tall and 49 mm deep. This power connector has an operating temperature range of -40 °C to 125 °C.
