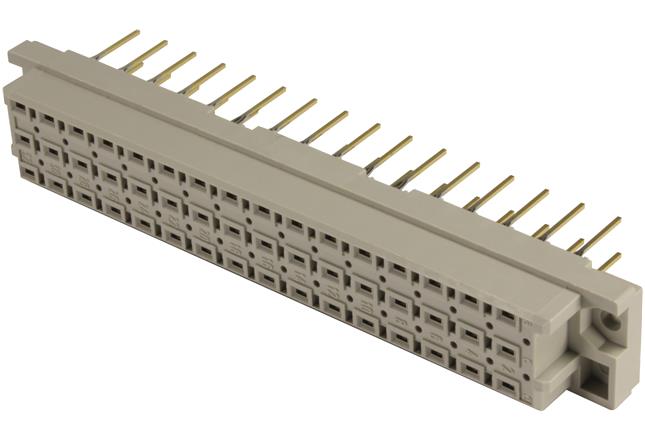

HARTING Technology Group09052482851Connector Backplane
Conn Backplane F 48 POS 5.08mm Press Fit ST Thru-Hole
| Compliant | |
| EAR99 | |
| Active | |
| EA | |
| Automotive | No |
| PPAP | No |
| Backplane | |
| F | |
| 48 | |
| Press Fit | |
| 5.08 | |
| Straight | |
| 6 | |
| 1000000 | |
| 15 | |
| 500 | |
| 90 | |
| 15.6 | |
| 11.55 | |
| Through Hole |
Communicate between multiple devices by linking them to this 09052482851 backplane connector from Harting. This F connector has 48 contacts that are plated with gold over nickel. This is a 3-row connector. Its pitch is 5.08 mm. It has a female type gender. It has a straight body orientation. This device has a maximum current rating of 6 A. This product is 90 mm long, 11.55 mm tall and 15.6 mm deep. It uses the press fit termination method.
| EDA / CAD Models |
