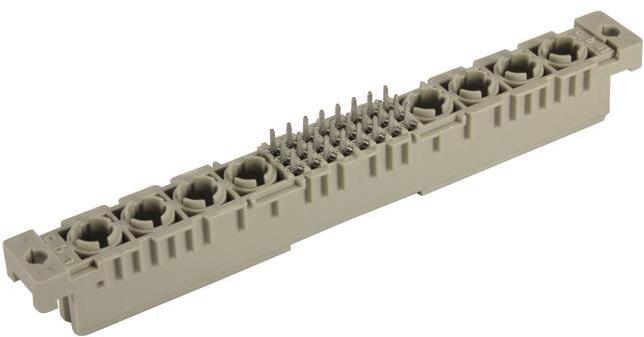

HARTING Technology Group09032246805Connector Backplane
Conn DIN 41612 F 24/8 POS 7.62mm/2.54mm Solder ST Thru-Hole
| Compliant | |
| EAR99 | |
| Active | |
| 8536.69.40.40 | |
| Automotive | No |
| PPAP | No |
| DIN 41612 | |
| F | |
| 24/8 | |
| Solder | |
| 7.62/2.54 | |
| Straight | |
| 2 | |
| 1000000 | |
| 20 | |
| -55 | |
| 125 | |
| 400 | |
| 94.9 | |
| 10.5 | |
| 12.6 | |
| Through Hole |
If you are in need of a connector that can provide a parallel serial bus connection, look no further than the din 41612 09032246805 backplane connector from Harting. This F connector has 24 / 8 contacts that are plated with gold over nickel. It has a female type gender. It has a straight body orientation. This device has a maximum current rating of 2 A. It uses the solder termination method. This product is 94.9 mm long, 12.6 mm tall and 10.5 mm deep.
