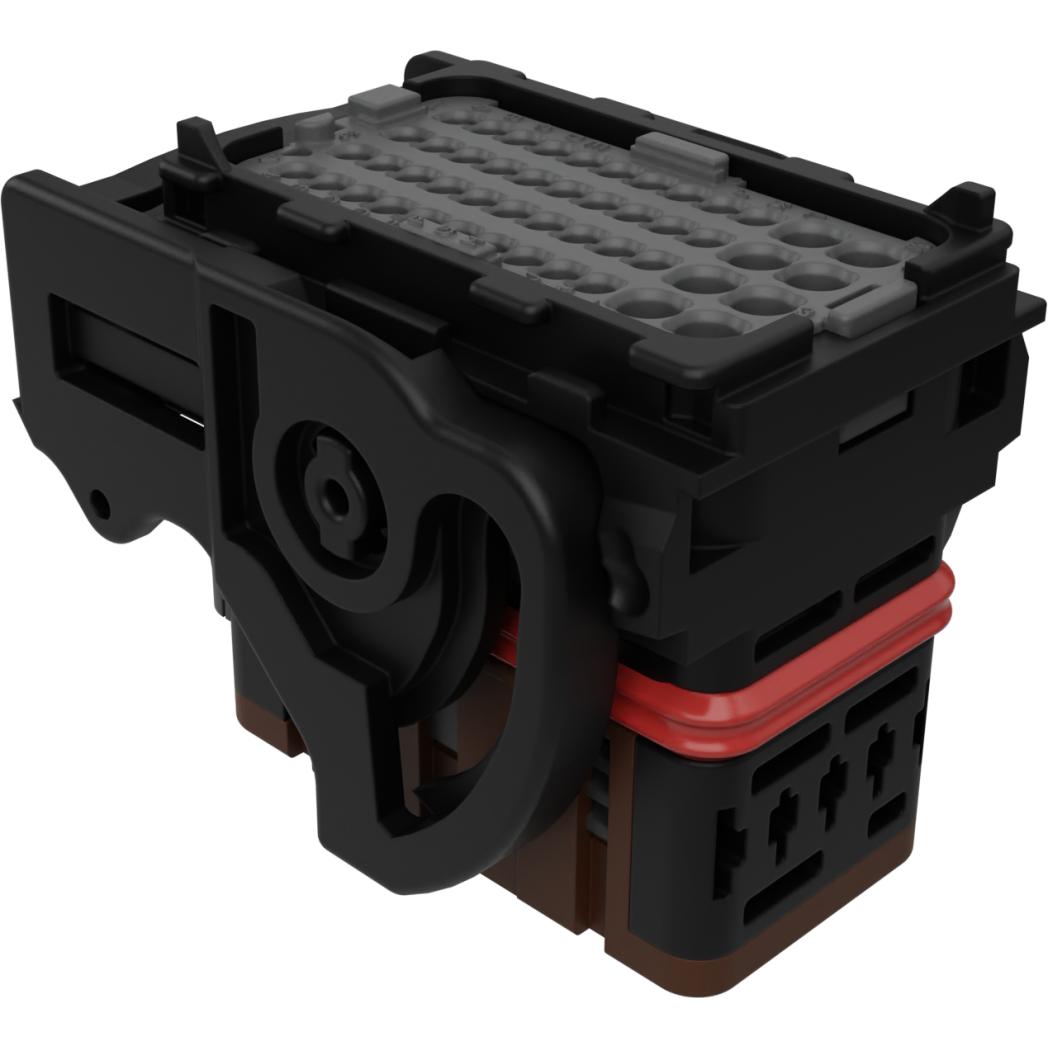

Molex0643201319Connector Discrete Wire Housing
Conn Housing RCP 48 POS 2.54mm/3.7mm Crimp ST Cable Mount Brown Carton
| Compliant | |
| EAR99 | |
| Active | |
| COMPONENTS | |
| SVHC | Yes |
| SVHC Exceeds Threshold | Yes |
| Automotive | No |
| PPAP | No |
| Housing | |
| RCP | |
| 48 | |
| 4 | |
| Crimp | |
| 2.54/3.7 | |
| Straight | |
| 12/Contact | |
| 250VAC | |
| 100 | |
| -40 | |
| 125 | |
| 20 | |
| Carton | |
| 35.771 | |
| 34.9 | |
| 40.1 | |
| Cable Mount |
Use this 0643201319 discrete wire housing from Molex for a durable connection between discrete wires. This F connector has 48 F contacts. It has a straight body orientation. This is a 4-row connector. It has a female type gender. Its pitch is 2.54 mm. It has a maximum voltage rating of 250 VAC. This device has a maximum current rating of 12 A/contact. This product is 34.9 mm long and 40.1 mm. This rectangle connector has an operating temperature of -40 to 125 °C. 0643201319 is housed in brown polyester.
