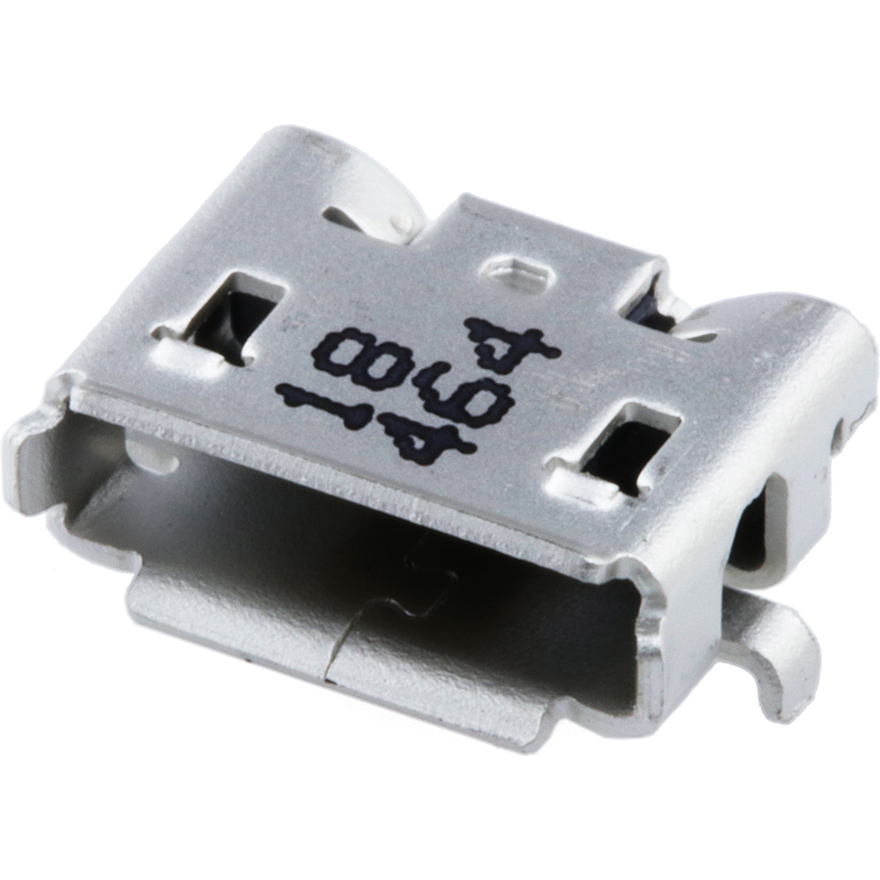

Molex0475890001Connector USB
Conn Micro USB 2.0 Type AB RCP 2Power/3Signal POS 0.65mm Solder RA SMD 5 Terminal 1 Port Micro-USB T/R
Other Part Names : 475890001
| Compliant | |
| EAR99 | |
| Active | |
| 8536.69.80.00 | |
| Automotive | No |
| PPAP | No |
| Micro USB 2.0 Type AB | |
| RCP | |
| 5 | |
| 2Power/3Signal | |
| 1 | |
| Solder | |
| 0.65 | |
| Right Angle | |
| (1.8/1)/Contact | |
| 30VAC | |
| 1000 | |
| 30 | |
| 10000 | |
| Stainless Steel | |
| Matte Tin Over Nickel | |
| -30 | |
| 85 | |
| Tape and Reel | |
| 0.263 | |
| 8.65 | |
| Micro-USB | |
| 3 | |
| Surface Mount |
Use the micro USB type ab 0475890001 audio and video connector from Molex to make your application work properly. This RCP connector's 5 contacts that are made out of copper alloy and plated with gold over palladium nickel over nickel. It has a right angle body orientation. This connector has a single port. It has a receptacle type gender. It has a maximum voltage rating of 100 VAC. Its pitch is 0.65 mm. This device has a maximum current rating of 1 A/contact. 0475890001 is housed in liquid crystal polymer. This product will be shipped in tape and reel packaging so that components can be mounted effectively. Its 5 terminals use the solder termination method. This part has a minimum operating temperature of -20 °C and a maximum of 85 °C. This product is 3 mm tall.
