Littelfuse0456020.ERFuses

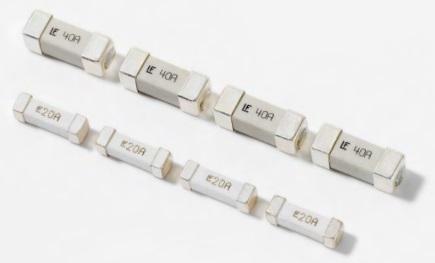

Fuse Chip Very Fast Acting 20A 125V SMD Solder Pad 10.1 X 3.12 X 3.12mm Ceramic T/R CSA/PSE/TUV/cULus
| Compliant with Exemption | |
| EAR99 | |
| Active | |
| COMPONENTS | |
| SVHC | Yes |
| SVHC Exceeds Threshold | Yes |
| Automotive | Unknown |
| PPAP | Unknown |
| Chip | |
| Very Fast | |
| Automotive|Base Station Power Supply|Cooling Fan System | |
| 10.1 X 3.12 X 3.12 | |
| 20 | |
| 125 | |
| 125 | |
| 100 | |
| 100@125VAC|300@65VAC|300@100VDC|1000@32VDC|500@72VDC | |
| 18 | |
| 0.0023 | |
| Solder Pad | |
| 2 | |
| -55 | |
| 125 | |
| Tape and Reel | |
| 3.05 | |
| 10.08 | |
| 3.05 | |
| Ceramic | |
| Surface Mount |
A great alternative to a circuit breaker, this a chip 0456020.ER fuse from Littelfuse will protect your electronics. This device has a current rating of 20. This fuse has a minimum operating temperature of -55 °C and a maximum of 125 °C. It has 2 terminals. The 0456020.ER fuse has a solder pad termination style. Mount your fuse on a printed circuit board using surface mount technology to produce the most effective results. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. Its fuse is made from ceramic. This product is 10.1 mm long, 3.12 mm tall and 3.12 mm deep. The maximum AC voltage rating is 125 VAC.
| EDA / CAD Models |
