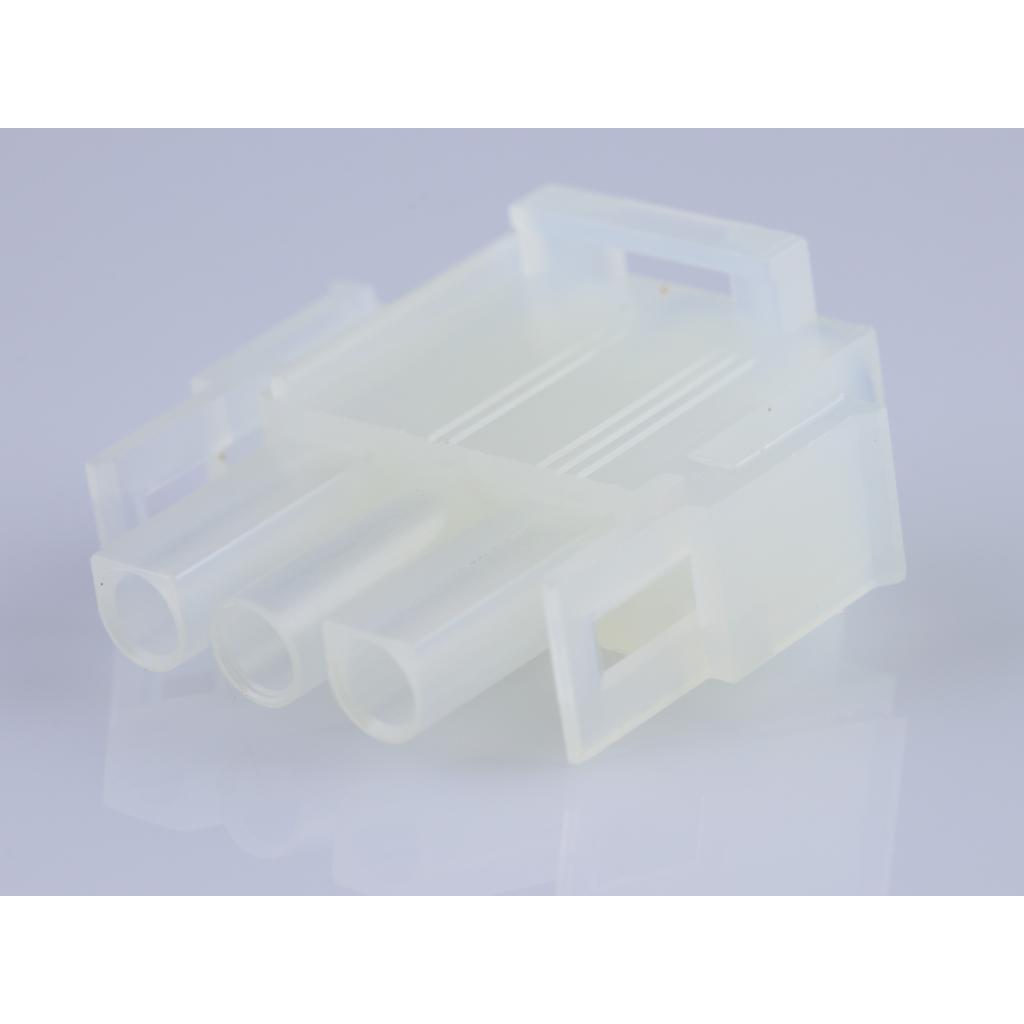

Molex0050841035Connector Discrete Wire Housing
Conn Housing M 3 POS Crimp ST Cable Mount Natural MLX™ Bag
| Compliant | |
| EAR99 | |
| Active | |
| 8538.90.81.80 | |
| SVHC | Yes |
| SVHC Exceeds Threshold | Yes |
| Automotive | No |
| PPAP | No |
| Housing | |
| M | |
| 3 | |
| 1 | |
| Crimp | |
| Straight | |
| 20/Contact | |
| 600V | |
| -55 | |
| 105 | |
| Bag | |
| 2.66 | |
| 14.73 | |
| 27.61 | |
| MLX™ | |
| Cable Mount |
Molex's 0050841035 discrete wire housing provides a durable connection for discrete wires. This M connector has 3 M contacts. It has a straight body orientation. It has a male type gender. This is a 1-row connector. It has a maximum voltage rating of 600 V. This device has a maximum current rating of 20 A/contact. This rectangle connector has an operating temperature of -55 to 105 °C. 0050841035 is housed in natural nylon. This product is 27.43 mm deep.
