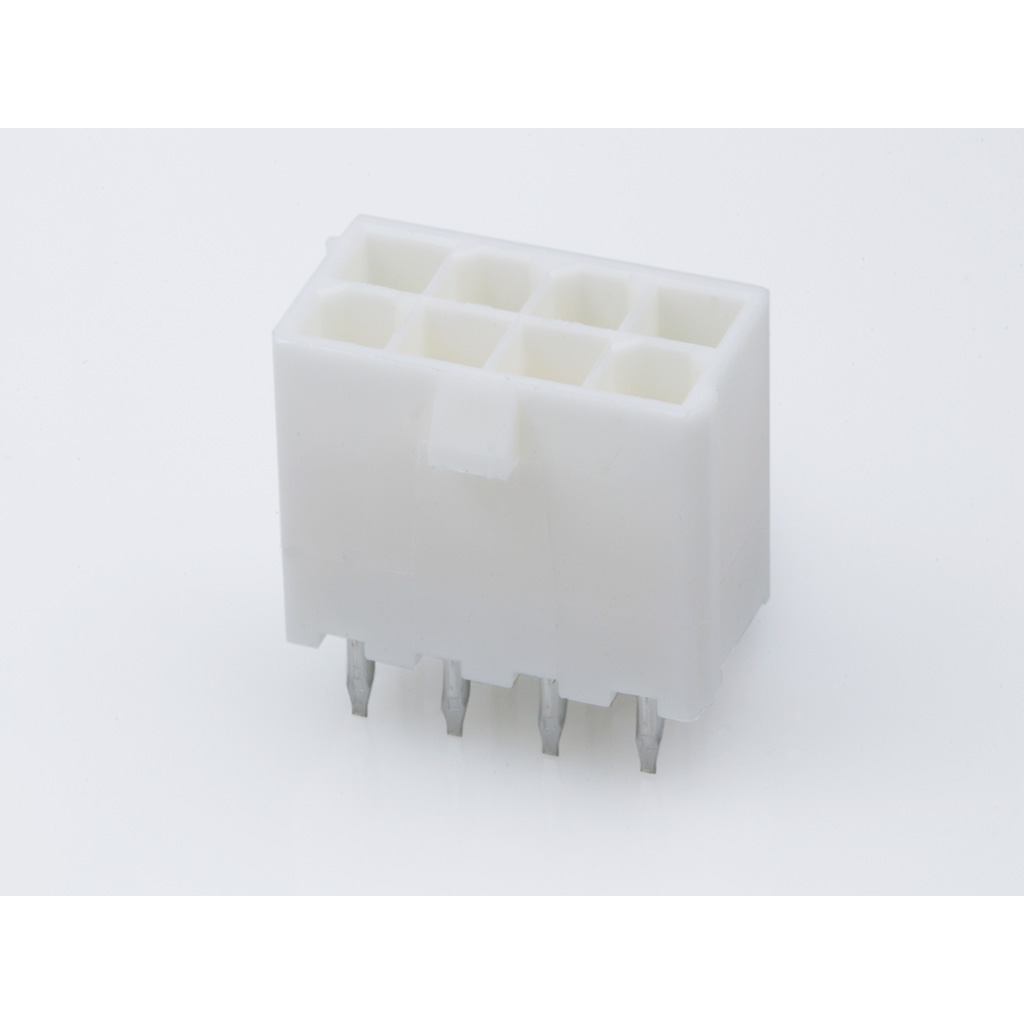

Molex0039310088Connector Headers and PCB Receptacles
Conn Wire to Board HDR 8Power POS 4.2mm Solder ST Top Entry Thru-Hole Mini-Fit Jr Bag
| Compliant | |
| EAR99 | |
| Active | |
| 8536.69.40.40 | |
| Automotive | No |
| PPAP | No |
| Wire to Board | |
| HDR | |
| 8Power | |
| 2 | |
| Solder | |
| 4.2 | |
| Straight | |
| Center Key | |
| 4.2 | |
| 9/Contact | |
| 600V | |
| 1000 | |
| 10 | |
| -40 | |
| 105 | |
| 30 | |
| Bag | |
| 2.2973 | |
| 18.8 | |
| 11 | |
| 12.8 | |
| Mini-Fit Jr | |
| Contact Plating Thickness | (0.76/1.27)um |
| 3.5 | |
| Through Hole |
Use this 0039310088 power connector from Molex to connect a power supply to a circuit. This HDR connector's 8 contacts that are made out of brass and plated with gold over nickel. This connector has a single port. It has a header type gender. Its pitch is 4.2 mm. It has a maximum voltage rating of 600 V. It has a straight body orientation. 0039310088 is housed in nylon 6/6. This device has a maximum current rating of 9 A/contact. This product is 18.4 mm long, 12.8 mm tall and 11 mm deep. This power connector has an operating temperature range of -40 °C to 105 °C. Its 8 terminals use the solder termination method.
