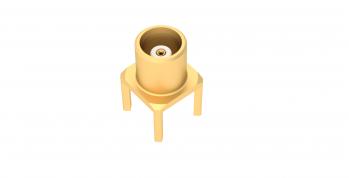

RadiallR113426000射频连接器
Conn MCX RCP 0Hz to 6GHz 50Ohm Solder ST Thru-Hole Gold Over Nickel
| Compliant with Exemption | |
| EAR99 | |
| Active | |
| 8536.69.80.00 | |
| SVHC | Yes |
| SVHC超标 | Yes |
| Automotive | No |
| PPAP | No |
| MCX | |
| RCP | |
| Solder | |
| Straight | |
| F | |
| Gold Over Nickel | |
| 0 to 6G | |
| 0.07 | |
| 335V | |
| 50 | |
| 1000 | |
| 500 | |
| Standard | |
| -55 | |
| 155 | |
| 6 | |
| 6 | |
| 5.9 | |
| Through Hole |
A low impedance means lower resistance levels for easier data transfer, this mcx R113426000 RF connector from Radiall will do just that while giving you protection. This connector's body is plated in gold over nickel. It has a straight body orientation. It has a receptacle type gender. It has an operating frequency of 0 to 6G Hz. This rf connector has an operating temperature of -55 to 155 °C. It uses the solder termination method. This product is 6 mm long, 5.9 mm tall and 6 mm deep.
