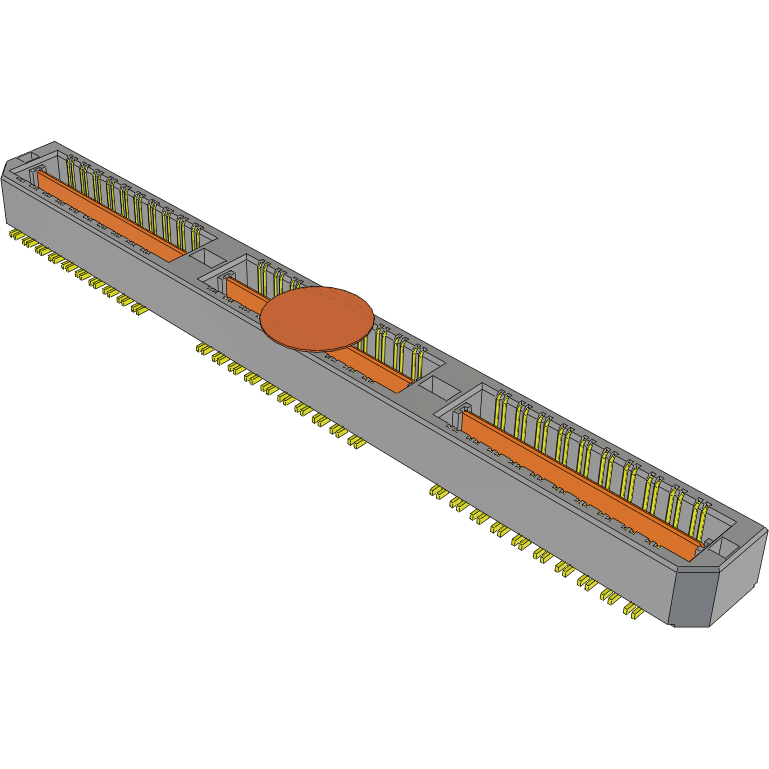

SamtecQSH-060-01-L-D-DP-A-K-TR连接器插头及 PCB 插座

Reduce safety concerns with this differential pair QSH-060-01-L-D-DP-A-K-TR header connector from Samtec which will reduce the possibility of accidentally shorting pins when a printed circuit board is being used. This SKT connector's 120 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a straight body orientation. This is a 2-row connector. Its pitch is 0.5 mm. It has a maximum voltage rating of 125 VAC. It has a socket type gender. This device has a maximum current rating of (2/25) A/contact. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This connector has an operating temperature of -55 to 125 °C. It uses the solder termination method. This product is 61.27 mm long, 3.25 mm tall and 7.49 mm deep. QSH-060-01-L-D-DP-A-K-TR is housed in black liquid crystal polymer.
