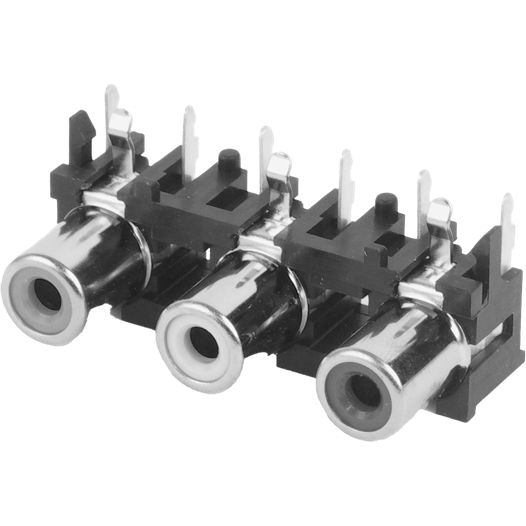

SwitchcraftPJRAN3X1U03X音频及视频连接器
Conn S-Video/3 Audio F 4/6 POS Solder RA Thru-Hole 10 Terminal 4 Port
| Compliant | |
| EAR99 | |
| Active | |
| 8536.69.40.51 | |
| Automotive | No |
| PPAP | No |
| S-Video/3 Audio | |
| F | |
| 4/6 | |
| 10 | |
| 4 | |
| Solder | |
| Right Angle | |
| 2 | |
| 34VDC|34VAC | |
| 30 | |
| -25 | |
| 80 | |
| 66 | |
| 28.5 | |
| 14 | |
| Through Hole | |
| Acrylonitrile Butadiene Styrene | |
| Copper Alloy |
Utilize your audio and video with the s-video/3 audio PJRAN3X1U03X audio and video connector from Switchcraft. This F connector's 4 / 6 contacts that are made out of copper alloy. It has a maximum voltage rating of 34 VDC|34VAC. It has a female type gender. This connector has 4 ports. It has a right angle body orientation. PJRAN3X1U03X is housed in acrylonitrile butadiene styrene. This device has a maximum current rating of 2 A. Its 10 terminals use the solder termination method. This part has an operating temperature range of -25 °C to 80 °C. This product is 66 mm long, 14 mm tall and 28.5 mm deep.
| EDA / CAD Models |
