| Compliant | |
| EAR99 | |
| Active | |
| 8473.30.11.80 | |
| Automotive | No |
| PPAP | No |
| Evaluation Board | |
| AD5420 | |
| DAC | |
| 16 | |
| Win 2000|Win NT|Win XP | |
| USB | |
| 5 to 40 | |
| No | |
| No |
Dev Kit Description
The evaluation board can be used as a standalone board, with control coming from an external DSP or microcontroller, or it can be connected to a PC via USB interface. Software is provided that can be used to program the registers of the AD5420 via the USB interface to the PC.

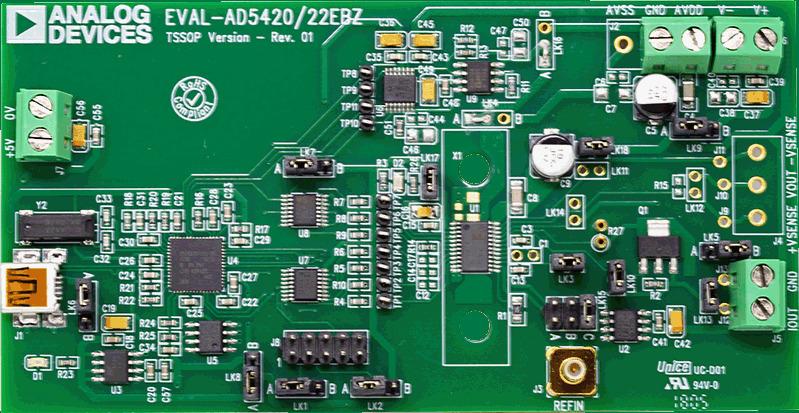

The EVAL-AD5420 is a full-featured evaluation board, designed to allow the user to easily evaluate all features of the AD5420 current source, 16-bit digital-to-analog converter (DAC). All of the AD5420 pins are accessible at on-board connectors for external connection. The board can be controlled by two means, via the on-board connector (J8) or via the USB port of a Windows® 2000-,NT®-, XP®-based PC using the AD5420 evaluation software. The default setup is for control via the USB port.
