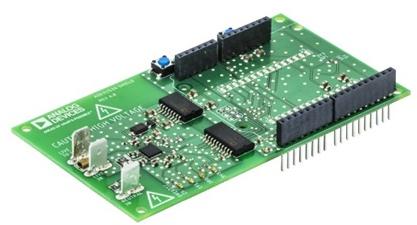

EV-ADE9153ASHIELDZ: Energy Metering IC with Self-Calibration
The EV-ADE9153ASHIELDZ is a high accuracy energy metering IC for single-phase, shunt-based metering applications.
The mSure® self- calibration feature allows a meter to calibrate its current and voltage channels without using an external reference meter. mSure self-calibration supports Class 1 and Class 2 meters. For standards-based metering, customers should verify traceability requirements for their application.
Key Features and Benefits
● Self-calibration to 1% accuracy based on direct measurement of the full signal path
● 3 high-performance ADCs with wide dynamic range (88 dB signal-to-noise ratio SNR)
● Extensive metrology feature set supports active and reactive energy standards and power quality measurements
Applications
● Energy: Utility Metering
● Building Infrastructure: smart lighting, smart power distribution, smart AC plugs, Solar inverters
● Automotive: Electric vehicle charging
● Communication: Data center power distribution units
