AlteraIntel® Arria® 10 GX FPGA | DK-DEV-10AX115S-A可编程逻辑开发板和套件

Hardware:

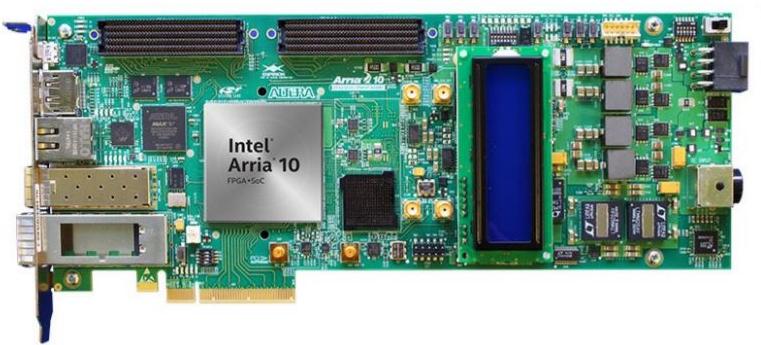

   • Arria 10 GX FPGA development board running on Arria 10 GX 10AX115S2F45I1SG2 FPGA
   • 2GB DDR4 SDRAM, 2GB DDR3 SDRAM, and RLDRAM3 (16 Meg x 36) daughtercards
   • Two FMC loopback cards supporting transceiver, LVDS and single-ended I/Os
   • One quad small-from-factor pluggable (QSFP) and one SFP+ port
   • Two FMC low-pin count (LPC + 15 transceivers) connector
   • PCIe x8 edge connector
   • Serial digital interface (SDI) channel
   • Character LCD
   • AC adapter power cables
   • Ethernet and USB cables

With this FPGA development kit, you’ll be able to:

   • Develop and test PCI Express (PCIe) 3.0 designs using the PCI-SIG-compliant development board
   • Develop and test memory subsystems consisting of DDR4, DDR3, QDR IV, and RLDRAM III memories
   • Develop modular and scalable designs using the FMC connectors to interface to a FMC provided
     by Intel partners and supporting protocols.
