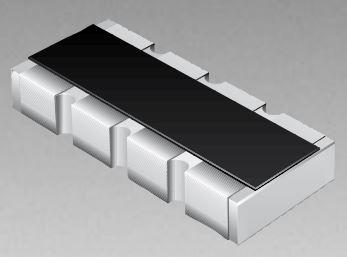

BournsCG1206MLC-12EESD 抑制器
ESD Suppressor Diode TVS Bi-Dir 12V 30Vc 8-Pin Case 1206(3216Metric) T/R
| Compliant | |
| EAR99 | |
| Active | |
| 8536.30.80.00 | |
| Automotive | No |
| PPAP | No |
| TVS | |
| Quad | |
| Bi-Directional | |
| 4 | |
| 12(Typ) | |
| 30(Typ) | |
| 0.01 | |
| 0.5 | |
| -40 | |
| 85 | |
| Tape and Reel | |
| Mounting | Surface Mount |
| Package Height | 0.5 |
| Package Width | 1.6 |
| Package Length | 3.2 |
| PCB changed | 8 |
| Supplier Package | Case 1206(3216Metric) |
| 8 | |
| Lead Shape | No Lead |
Protect users and systems from electrostatic discharge with this tvs CG1206MLC-12E ESD protection device from Bourns. This device's maximum clamping voltage is 30(Typ) V. This ESD diode has a maximum ESD protection device voltage of ±15@Air Gap/±8@Contact Disc kV. This ESD diode has an operating temperature range of -40 °C to 85 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. Its capacitance value is 0.5 pF. It is made in a quad configuration.
