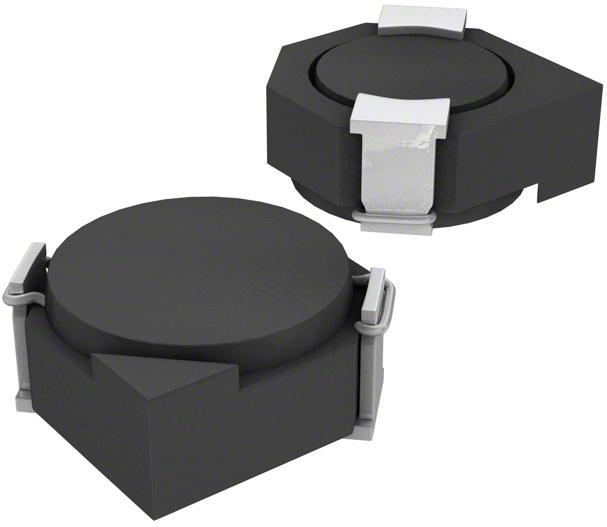

SumidaCDRH2D18/HPNP-2R2NC表面贴装电感器
Inductor Power Shielded Drum Core 2.2uH 30% 100KHz Ferrite 1.9A 0.06Ohm DCR 1212 T/R
| Compliant | |
| EAR99 | |
| Active | |
| COMPONENTS | |
| SVHC | Yes |
| Automotive | No |
| PPAP | No |
| Power | |
| Drum Core | |
| Shielded | |
| Ferrite | |
| 2.2u | |
| 30% | |
| 100K | |
| 1.9 | |
| 1.6 | |
| 0.06 | |
| 2 | |
| 1212 | |
| -40 | |
| 105 | |
| Tape and Reel | |
| 3.2 | |
| Surface Mount | |
| 3.2 | |
| 2 |
Make any circuit look clean and compact using this power CDRH2D18/HPNP-2R2NC surface mount inductor from Sumida Corporation. This SMD inductor has an operating temperature range of -40 °C to 105 °C. This SMD inductor has a maximum DC current of 1.9 A with a maximum resistance of 60m Ohm. This device utilizes drum core technology. Its test frequency is 100K Hz. It has an inductance of 2.2u H. This product is 3.2 mm long, 2 mm tall and 3.2 mm deep.
