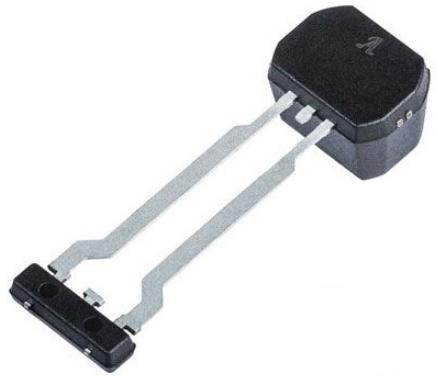

Allegro MicroSystemsATS19480LSNBTN霍尔效应传感器

ATS19480 Speed Sensor IC Provides a Single-channel Solution Ideal for Hybrid & Pure Electric Vehicle Transmission

Combining advanced GMR technology with leading automotive grade algorithms and packaging technology, Allegro now offers a cutting-edge, comprehensive transmission sensor portfolio that addresses the needs of today’s system developers and manufacturers, while leveraging the company’s 20 years of speed sensing expertise,
application-specific experience, and technological advancement.

The ATS19480 adds a speed-only protocol to the company’s recently released ATS19580 transmission speed and direction sensor IC, setting a new standard for speed sensing and allowing developers to achieve the highest levels of in-system capability and adaptability. With an industry-leading air gap that’s 50% larger than existing options, it improves design-in flexibility, expands design margin and tolerance capability, and facilitates a wider range of sensor installation locations. This helps reduce system complexity, size, weight, cost, and energy
consumption—boosting efficiency and minimizing carbon footprints.

Applications

•  Transmission

Features and Benefits

• •  Innovative GMR technology provides large operational air gap sensing on ferromagnetic targets
• •  Advanced algorithms for flexible design-in and system compensation
• •  Automatically adapts to extreme mechanical changes (air gap) and thermal drifts
• •  Integrated ASIL diagnostics and certified safety design process (optional fault reporting)
• •  Fully integrated SIP package contains GMR IC, protection capacitor, and back-bias magnet for guaranteed performance and reduced system cost

Product Spotlight Video

Featured Articles and Videos

Transmission Gear Tooth Sensing Application Note
Transmission Speed and Direction Sensor IC for Gear Tooth Sensing Brochure

Related Products

Allegro Part Number	Product Description	Disti Cost	Package Type	RoHs Compliant	Lead Time	COO
ATS19480LSNBTN	2-Wire Back Biased GMR Transmission Speed Sensor	$1.543	SIP	Yes	26 weeks	Philippines
