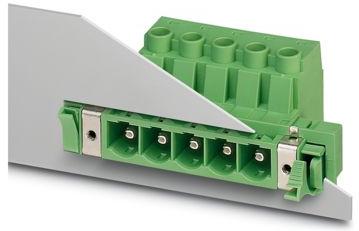

PHOENIX CONTACT1703483连接器接线板
Conn Terminal Block M 5 POS 10.16mm Screw RA Wall Mount 76A Cardboard
| Compliant | |
| EAR99 | |
| Active | |
| 8536.69.40.51 | |
| Automotive | No |
| PPAP | No |
| Terminal Block | |
| M | |
| 5 | |
| 10.16 | |
| 1 | |
| 5 | |
| Screw | |
| Right Angle | |
| 76 | |
| 1000V | |
| 5 | |
| -40 | |
| 100 | |
| Cardboard | |
| 54.775 | |
| 86.16 | |
| 56.5 | |
| 30.55 | |
| Green | |
| Wall Mount |
Never worry about wires becoming undone by implementing this 1703483 PCB terminal block developed by Phoenix Contact. This F connector has 5 F contacts. Its pitch is 10.16 mm. It has a maximum voltage rating of 1000 V. It has a female type gender. This is a 1-row connector. It has a right angle body orientation. This device has a maximum current rating of 76 A. 1703483 is housed in polyamide. This product is 86.16 mm long, 30.55 mm tall and 56.5 mm deep. Its wire is 6-18 AWG. It uses the screw termination method.
