| Compliant | |
| EAR99 | |
| Active | |
| 8536.69.40.40 | |
| Automotive | No |
| PPAP | No |
| DIN 41612 | |
| F | |
| 30 | |
| Press Fit | |
| 2.54 | |
| Straight | |
| 2 | |
| 1000000 | |
| 20 | |
| -40 | |
| 105 | |
| 400 | |
| 5.16 | |
| 39.9 | |
| 10.5 | |
| 11.6 | |
| 4.5 | |
| Through Hole |

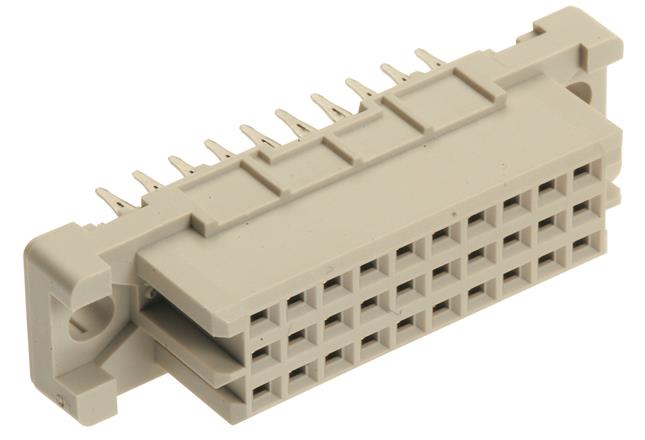

Harting's din 41612 09252306850 backplane connector allows multiple different printed circuit boards to communicate with each other via a computer bus, enabling you to form a complete computer system. This F connector's 30 contacts that are made out of copper alloy and plated with gold over nickel. Its pitch is 2.54 mm. It has a female type gender. This is a 3-row connector. It has a straight body orientation. This device has a maximum current rating of 2 A. It uses the solder termination method. This product is 39.8 mm long, 11.6 mm tall and 10.6 mm deep. 09252306850 is housed in thermoplastic. This backplane connector has an operating temperature of -40 to 105 °C.
