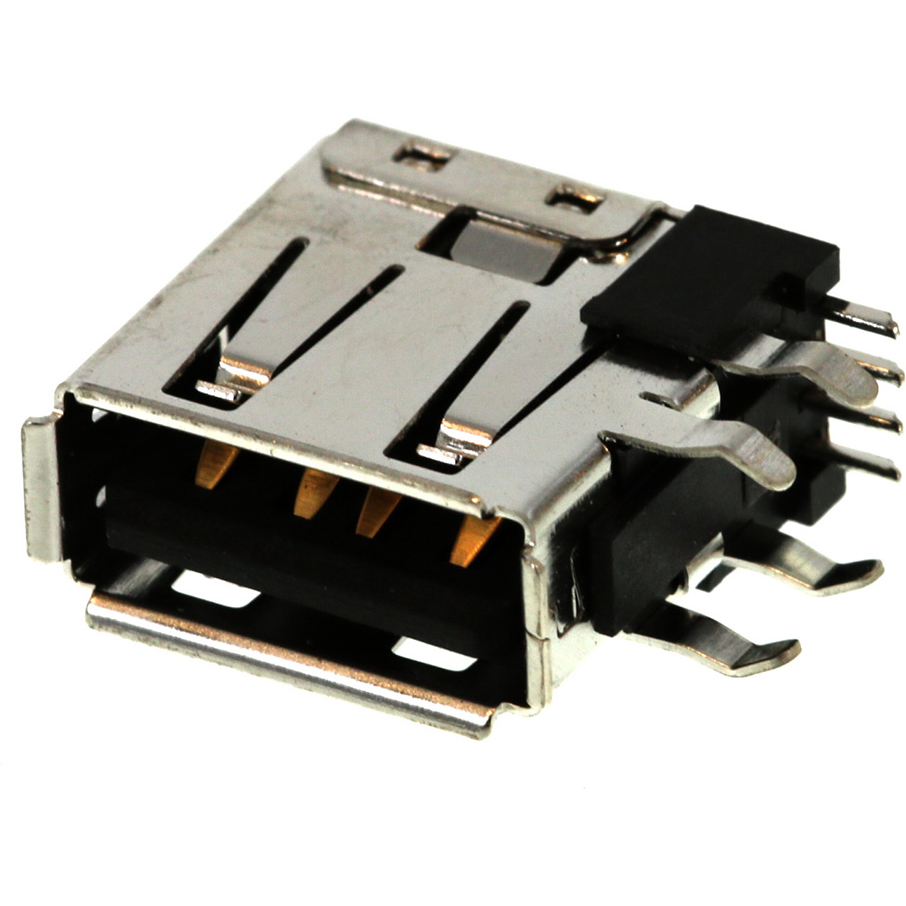

Molex0673298001Connector USB
Conn USB 2.0 Type A RCP 4 POS 1.4mm Solder RA Thru-Hole 4 Terminal 1 Port USB Tray
| Compliant | |
| EAR99 | |
| Active | |
| COMPONENTS | |
| Automotive | No |
| PPAP | No |
| USB 2.0 Type A | |
| RCP | |
| 4 | |
| 4 | |
| 1 | |
| Solder | |
| 1.4 | |
| Right Angle | |
| 1/Contact | |
| Copper Alloy | |
| Tin Over Nickel | |
| Tray | |
| 1.936 | |
| 7 | |
| 13.68 | |
| USB | |
| 14.47 | |
| Through Hole |
Use the usb type a 0673298001 audio and video connector from Molex for your design to run audio and video. This RCP connector's 4 contacts that are made out of phosphor bronze and plated with gold over nickel. Its pitch is 1.4 mm. It has a right angle body orientation. This connector has a single port. It has a receptacle type gender. This device has a maximum current rating of 1 A/contact. 0673298001 is housed in nylon. This component will be shipped in tray format. Its 4 terminals use the solder termination method. This product is 7 mm long, 14.47 mm tall and 13.68 mm deep.
