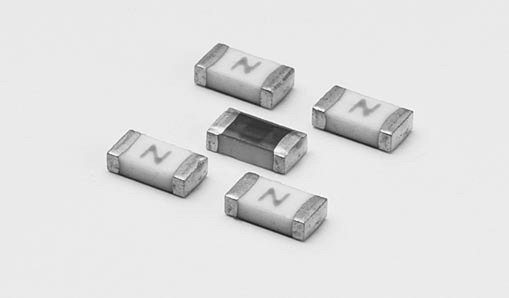

Littelfuse0437.500WR保险丝
Fuse Chip Fast Acting 0.5A 63V SMD Solder Pad 1206 Ceramic T/R CSA/cULus
| Compliant | |
| EAR99 | |
| Active | |
| COMPONENTS | |
| Automotive | No |
| PPAP | No |
| Chip | |
| Fast | |
| Automotive Electronic|Data Modem|LCD Display|Scanners | |
| 3.2 X 1.63 X 0.82 | |
| 0.5 | |
| 63 | |
| 63 | |
| 63 | |
| 0.26(Typ) | |
| 0.018 | |
| 0.908 | |
| Solder Pad | |
| 2 | |
| -55 | |
| 150 | |
| Tape and Reel | |
| 1.63 | |
| 3.2 | |
| 0.84 | |
| Ceramic | |
| Surface Mount | |
| 1206 |
Be protected by adding a chip 0437.500WR fuse developed by Littelfuse. Its maximum power dissipation is 0.26(Typ) W. This device has a current rating of 0.5. This device has a maximum power dissipation of 0.26(Typ) W. This fuse has an operating temperature range of -55 °C to 150 °C. It has 2 terminals. The 0437.500WR fuse has a solder pad termination style. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. Mount your fuse on a printed circuit board using surface mount technology to produce the most effective results. Its fuse is made from ceramic. This product is 3.2 mm long, 0.84 mm tall and 1.63 mm deep. The maximum AC voltage rating is 63 VAC and the maximum DC voltage rating is 63 VDC.
