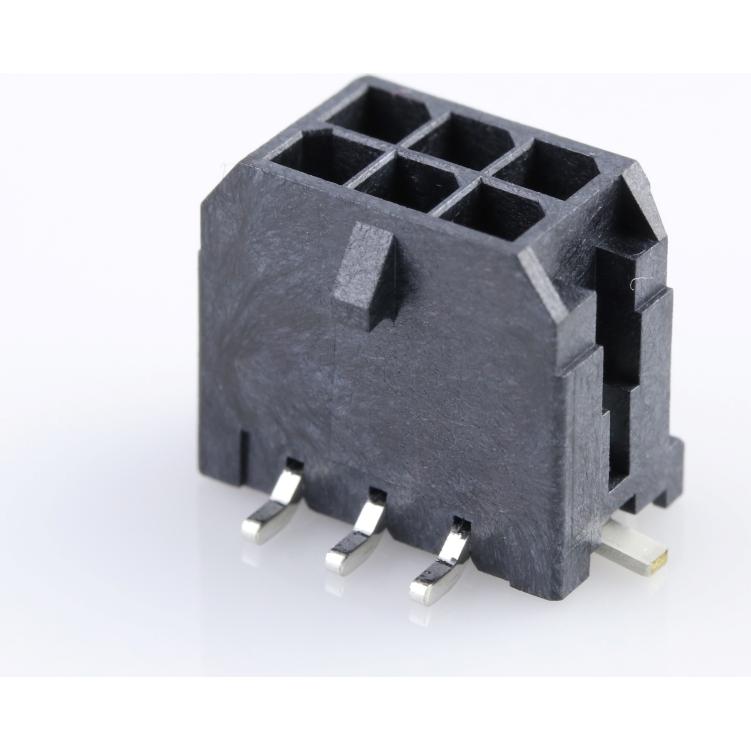

Molex0430450618连接器插头及 PCB 插座
Conn Wire to Board HDR 6Power POS 3mm Solder ST Top Entry SMD Micro-Fit 3.0 T/R
Other Part Names : 430450618
| Compliant | |
| EAR99 | |
| Active | |
| COMPONENTS | |
| Automotive | No |
| PPAP | No |
| Wire to Board | |
| HDR | |
| 6Power | |
| 2 | |
| Solder | |
| 3 | |
| Straight | |
| Center Key | |
| 3 | |
| 8.5/Contact | |
| 600V | |
| 1000 | |
| 10 | |
| -40 | |
| 105 | |
| 30 | |
| Tape and Reel | |
| 1 | |
| 16.65 | |
| 11.2 | |
| 9.91 | |
| Micro-Fit 3.0 | |
| Contact Plating Thickness | (1.52/1.27)um |
| Surface Mount |
This wire to board 0430450618 header connector from Molex is used for jumper posts to support physical configuration options on printed circuit boards. This HDR connector's 6 contacts that are made out of brass alloy and plated with tin over nickel. This is a 2-row connector. It has a maximum voltage rating of 600 V. Its pitch is 3 mm. It has a straight body orientation. It has a header type gender. This device has a maximum current rating of 5 A/contact. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. 0430450618 is housed in black liquid crystal polymer. This product is 16.65 mm long, 9.91 mm tall and 8.77 mm deep. It uses the solder termination method. This connector has an operating temperature of -40 to 105 °C.
| EDA / CAD Models |
