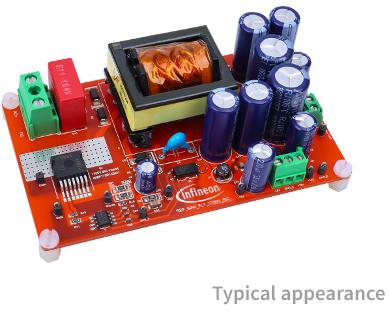

Infineon Technologies AGREF62WFLY1700VSICTOBO1Power Management Development Boards and Kits

The reference board was developed to support customers designing auxiliary power supplies for three-phase converters using the 1700 V CoolSiC™ MOSFET in a single-ended flyback topology. The board has three outputs of +15 V, -15 V and +24 V with up to 62.5 W output power working in a wide input voltage range from 200 VDC to 1000 VDC. The reference board works in quasi-resonant mode and has a peak efficiency of 90.56% at a full load specification.

Summary of Features

• Quasi-Resonant Mode Operation

• Shows the advantages of the 1700 V CoolSiC™ MOSFET technology efficiency performance

• Current limit, over temperature, overload/open loop protection

Benefits

• High efficiency

• Simple design single-ended flyback topology

• No heatsink required

Potential Applications

• Fast EV charging

• Industrial drives

• Uninterruptible Power Supply (UPS)

• Solutions for solar energy systems

Related product

• IMBF170R1K0M1
